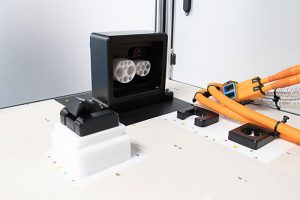

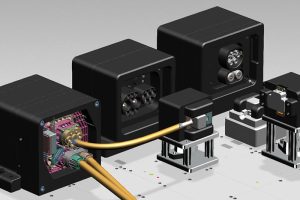

High Voltage Harness Testing Fixture Module

Module Introduction

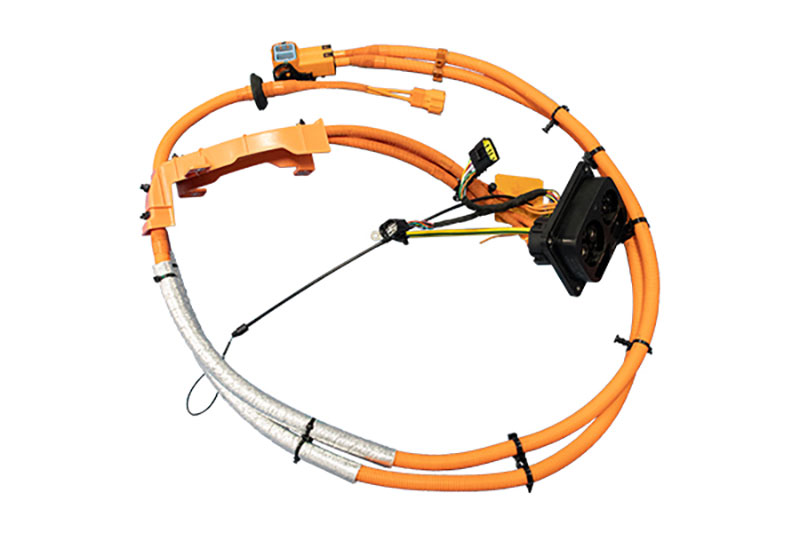

Mainly used for testing high-voltage wiring harness cables, electric vehicle charging guns/sockets, electric vehicle PDUs, etc. The fixture module has the following functions:

1. Automatic indicator light
2. Wire harness pneumatic locking
3. 2-wire and 4-wire probe
4. Lamp language detection
5. Electromagnetic valve detection
6. Lock plate in place detection
7. Integrated functions for airtight and electrical testing

Application

• High voltage harness testing
• High voltage cable testing for electric vehicles
• Charging gun/seat test
• PDU testing

Performance characteristics

This test fixture meets the following testing conditions:

Maximum withstand voltage: 8kV AC/10kV DC

Insulation resistance:>100GΩ

Low resistance performance (four wire): 10 μΩ

Airtight leakage:<10Pa/Min (100mL chamber)
