Cable Harness Tester

Our factory offers one-stop comprehensive harness testing including: Low/ Medium/ High voltage:

  • DP5000   (1.5kV DC/1kV AC)
  • DP6000   (3kV DC/2kV AC)
  • DP7000   (4kV DC/3kV AC)
  • DP8000   (5kV DC/4kV AC)
  • DP9000   (5kV DC/5kV AC)
Wire Harness Tester
Products Categories
Battery Tester
Air Leakage Tester
Insulation Tester
PV Safety Tester Hipot Tester
Cable Harness Tester
DC Electronic Load
DC Power Supply
Laboratory Equipment & System
DC Resistance Tester
Pole Plate short circuit tester
Get A Free Quote
Contact Form Demo (#3)

Cable Harness Tester Series

This series cable harness tester has the following function:

  • Mixed testing of two and four wires
  • Ultra fast OS testing
  • Precise OS testing
  • Conductivity testing
  • High current conductivity testing
  • DCR testing
  • LCR testing
  • Insulation testing
  • AC/DC hipot test
  • ESD testing
The compact DP8000 high-voltage wire harness tester (horizontal type) supports 3kV/5kV withstand voltage test and is equipped with a modular expansion interface and a four-wire measurement fixture.
DP8000 High Voltage Wire/Cable Harness Tester (horizontal type)
high voltage compact wire and cable harness tester DP9000
DP9000 6kV High Voltage Compact Wire/Cable Harness Tester
Modular vertical expansion unit: supports 16-point (6kV)/32-point (4kV) test cards, with solenoid valve drive IO ports, meeting military-grade distributed detection.
DP8000 6kV High Voltage Wire/Cable Harness Tester (vertical type)
DP7000 wire harness tester and cable harness tester
DP7000 4kV High Voltage Compact Wire/Cable Harness Tester
DP6000S wire harness testing machine 2kV AC and 3kV DC medium voltage
DP6000/DP6000S Medium Voltage Cable Harness Tester

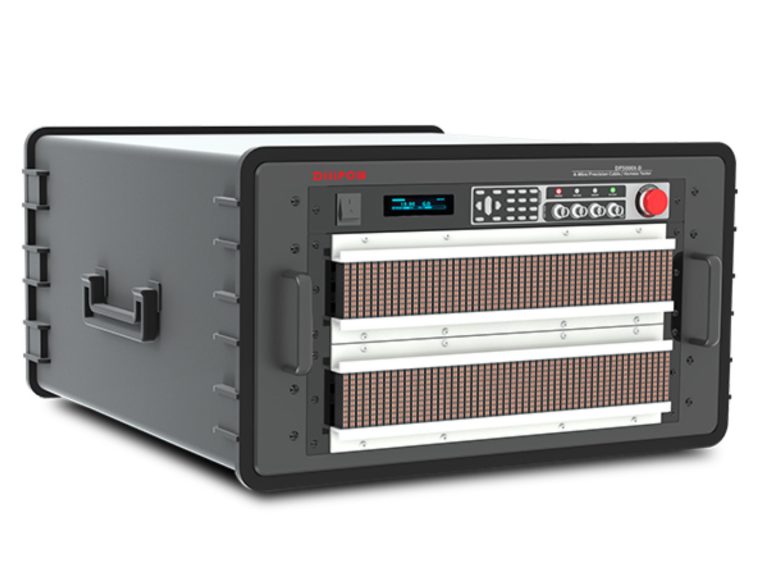

dp5000
DP5000X-D Distributed Wire/Cable Harness Tester
Low-voltage harness tester: 10μS high speed/10GΩ insulation/FPC flexible board test, consumer electronics manufacturing-level distributed verification solution
DP5000/DP5000S Low Voltage Cable Harness Tester

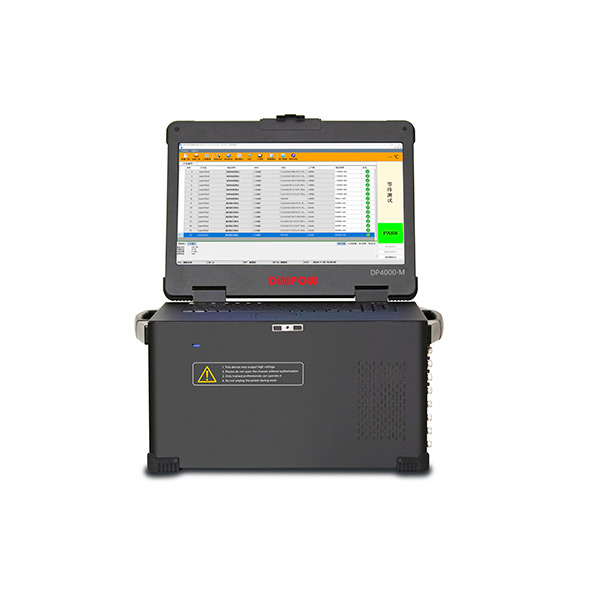

Portable wire harness tester: 1000V withstand voltage/512 points/20000 points expansion, military and aerospace on-site distributed maintenance solution.
Portable DP4000-M Wire harness tester
