DP7000 4kV High Voltage Compact Wire/Cable Harness Tester
DP7000 compact 4kV tester: 4kV withstand, 50GΩ insulation, 192-point for industrial harness validation.
DP7000 Harness Tester Description
DP7000 4kV High Voltage Compact Wire/Cable Harness Tester delivers up to 3.5kV AC / 4kV DC, with a much smaller footprint than the 1st-generation high-voltage wire/cable harness tester. It supports distributed high-voltage wire harness testing for flexible deployment.
This DP7000 tester offers 2-wire & 4-wire measurement, precise OS testing, max 1A high-current conduction test, DCR test, LCR test, insulation resistance test, AC/DC withstand voltage test and ESD test.
The DP7000 wire/cable harness tester validates high-voltage connectors, cables, EV battery pack harnesses, automotive PDU control boxes, AC/DC charging guns and charging sockets. Its distributed version is widely deployed for cable & harness inspection on railway vehicle jumpers, electrical boxes and vehicle cabins.
DP7000 4kV High Voltage Compact Wire/Cable Harness Tester Technical Features
Supports both 2-wire and 4-wire testing; any channel can be configured as an excitation or sampling terminal.
6 basic test modes (OS / DCR / IR / HIPOT / LCR / ESD) plus over 10 extended functional modes.
Features automatic graphic editing and point searching. The built-in multimeter works on any port.
Equipped with a multifunctional IO board to realize one-stop testing for charging guns and PDUs.
Built-in system self-test for equipment fault diagnosis.
4-wire conduction test with minimum resolution of 1 μΩ.
Insulation resistance test up to 50 GΩ.
Withstand voltage test with 8-level arc detection.
LCR test frequency range: 50 Hz ~ 10 kHz.
Max. 4 kV DC / 3.5 kV AC withstand voltage testing.
Integrated programmable 0~10 V / 1 A DC low-voltage source.
ESD test adopts the 1 mA constant-current test method (universal industry standard).
IO ports support multi-channel solenoid valve driving.
Software & Interfaces
Three-level user access management: administrator, programmer and operator roles.
Storage for up to 500 distinct test projects.
Self-learning test points to identify wiring connections between terminals.
Supports self-learning or manual segmentation of test network segments.
Test report editing & export; supports PDF and Word print output.
Fully configurable test network segments and parameters, including OS and insulation test settings.
Relay life monitoring function.
PTC / NTC temperature conversion.
16-bit IO input and output.
Database connectivity and MES system integration.
DP7000 4kV High Voltage Compact Wire/Cable Harness Tester Applications
- lectric vehicle high-voltage cables and connectors testing

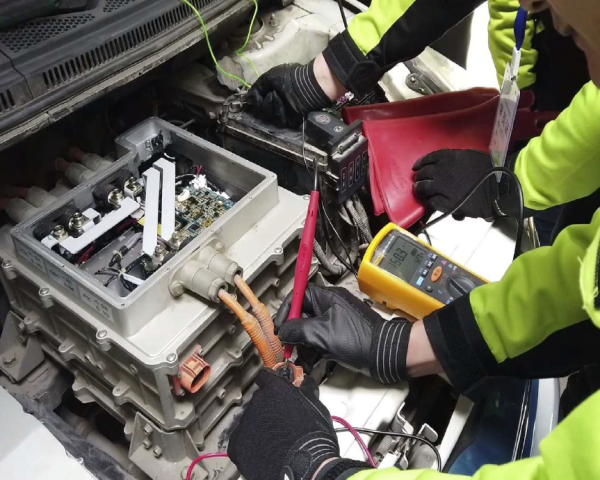

- EV PDU testing
- AC/DC charging gun & socket testing
- Distributed testing for rail transit
- Military and nuclear cable & wire harness testing
DP7000 4kV High Voltage Compact Wire/Cable Harness Tester Technical Data Sheet
| Model | DP7000 | ||
| Measuring Mode | Inner four-wire + outer four-wire | ||
| Maximum number of test points | 192 | ||
| AC Output Voltage | 25V-3500 V | ||
| DC Output Voltage | 25V-4000 V | ||
| High Voltage Output Accuracy | ±3% | ||
| High Voltage Measurement Accuracy | ±3% | ||
| High Voltage Measurement Time | 0.02s – 60s, user delay not included | ||
| Low Voltage Measurement Time | 0.02s – 60s, user delay not included | ||
| O/S Measurement Time | 5mS (192 points, user delay not included) | ||
| Test items and range | O/S, Intermittence O/S, Quick Intermittence Open Circuit |
2kΩ-100 kΩ | |
| Inner Four-wire Test Conductance | 0.1Ω-300kΩ | ||
| Outer Four-wire Conductance Test | Measurement Range | 1uΩ-300kΩ | |
| Current Signal | ≤1A | ||
| AC Hipot Leakage Current | 0.01mA-10mA | ||
| DC Hipot Leakage Current | 1uA-5mA | ||
| DC Hipot Insulation Resistance | 1MΩ-10GΩ | ||
|
DC Resistance
|
Measurement Range | 0.1Ω-1MΩ | |
| Level Signal | 0-4V | ||
| Current Signal | ≤2mA | ||
|
LCR
|
Capacitances Measurement Range | 10pF-100uF | |
| Resistance Measurement Range | 100mΩ-20MΩ | ||
| Inductance Measurement Range | 10nH~100H | ||
| Frequency Signal | 50Hz/60Hz/100Hz/120Hz/1kHz/10kHz/100kHz | ||
| Range Mode | AUTO/HOLD | ||
| Level Signal | 0.1/0.3V/1V | ||
| Single-Side Test | Yes | ||
| O/S Terminal Judge | Yes | ||
| Advanced Functions | Programmable continuous test/ Automatic point search/ Auto-diagnosis | ||
| Test Scan Mode | Automatic/manual/external | ||
| Measurement Signal | low voltage measurement signal | ||
| Storage Memory | Number of test file up to 500 sets | ||
| OS Voltage | 5V | ||
| Panel | System/ Rapid/ Edit/ Function | ||
| Indicator | Pass/ Fail HV LED red-green indicator lights/ Screen Display/ Sound | ||
| Dimension (W*H*D) | 500*420*400 mm | ||
| Weight | 25 kg | ||
