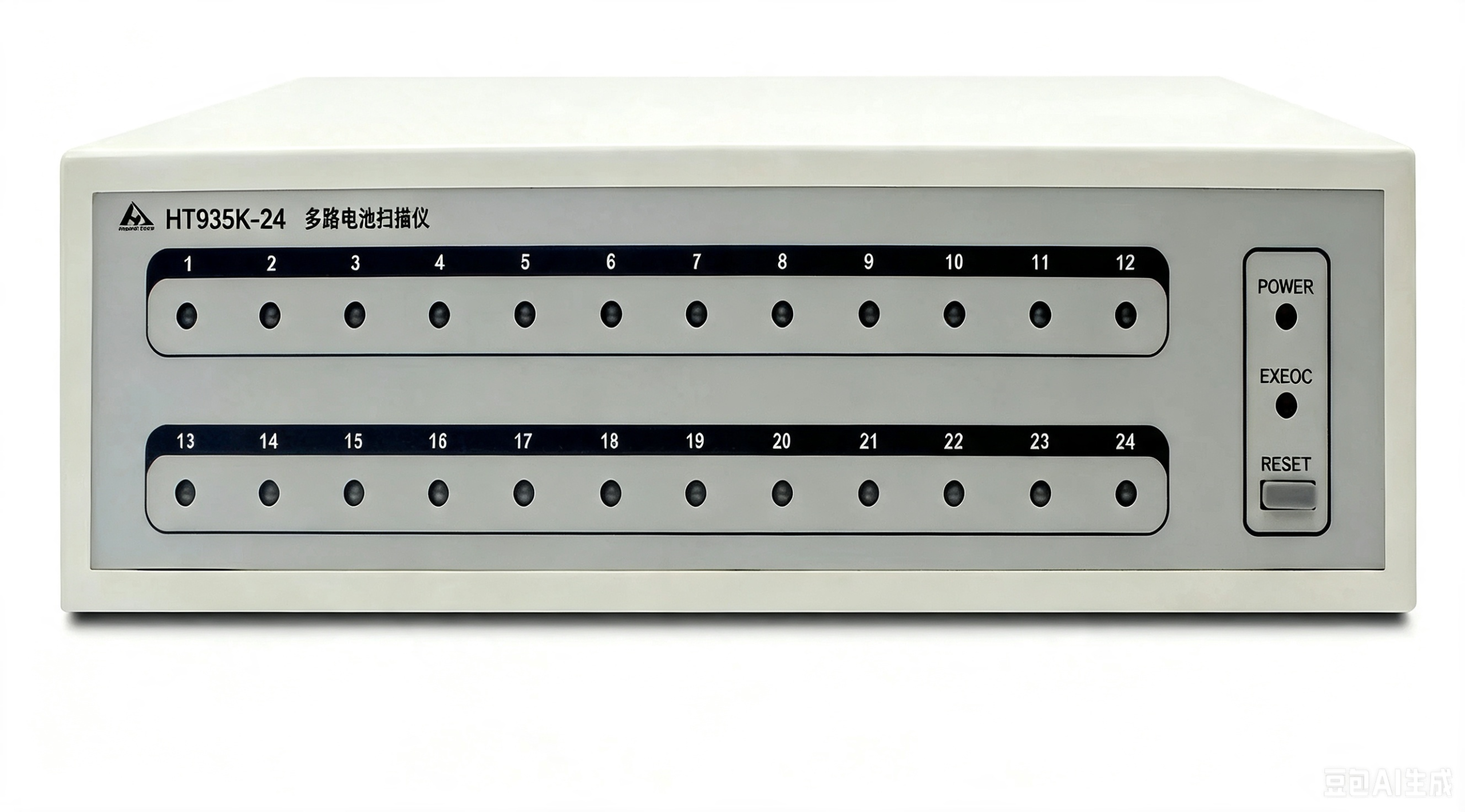

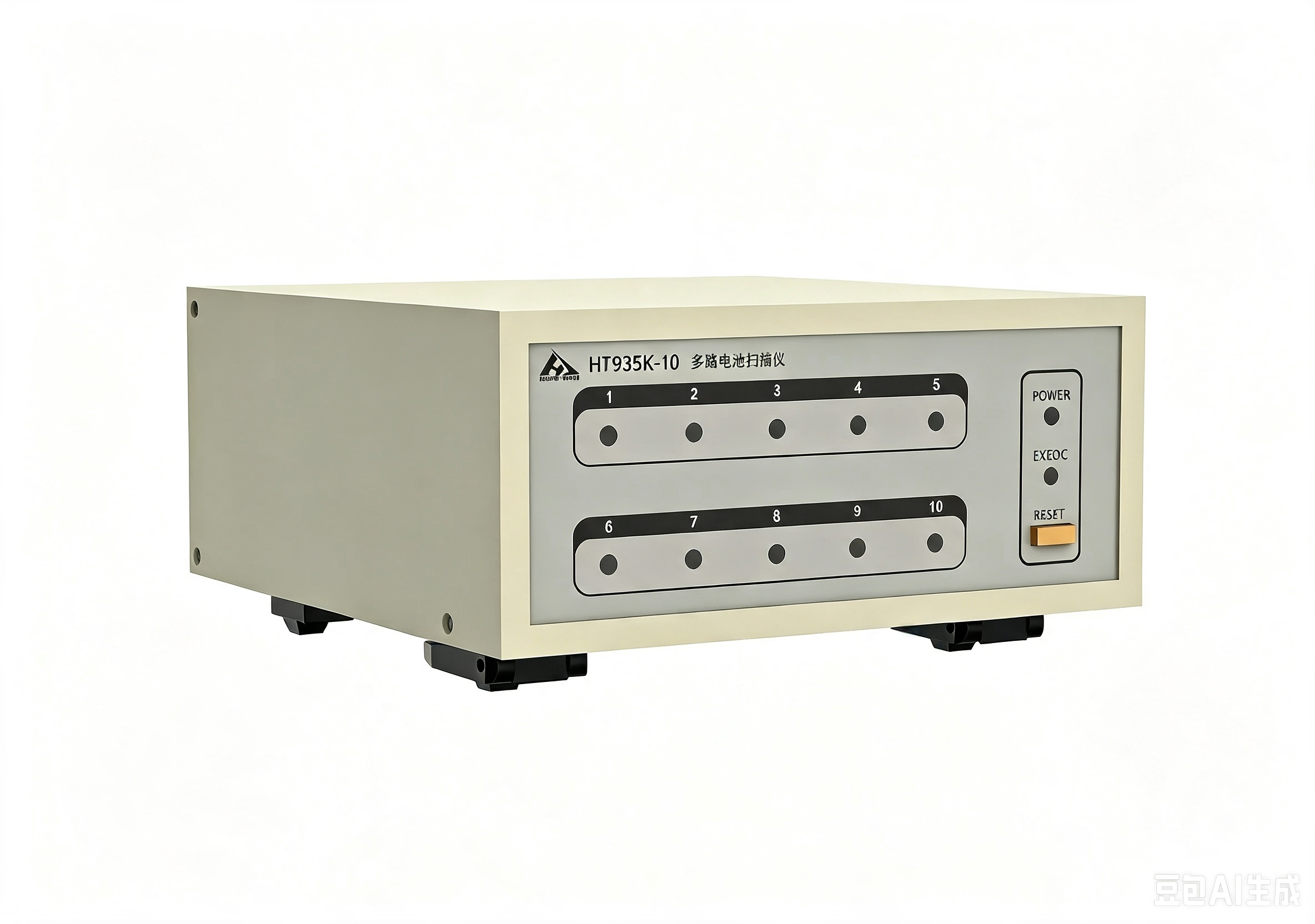

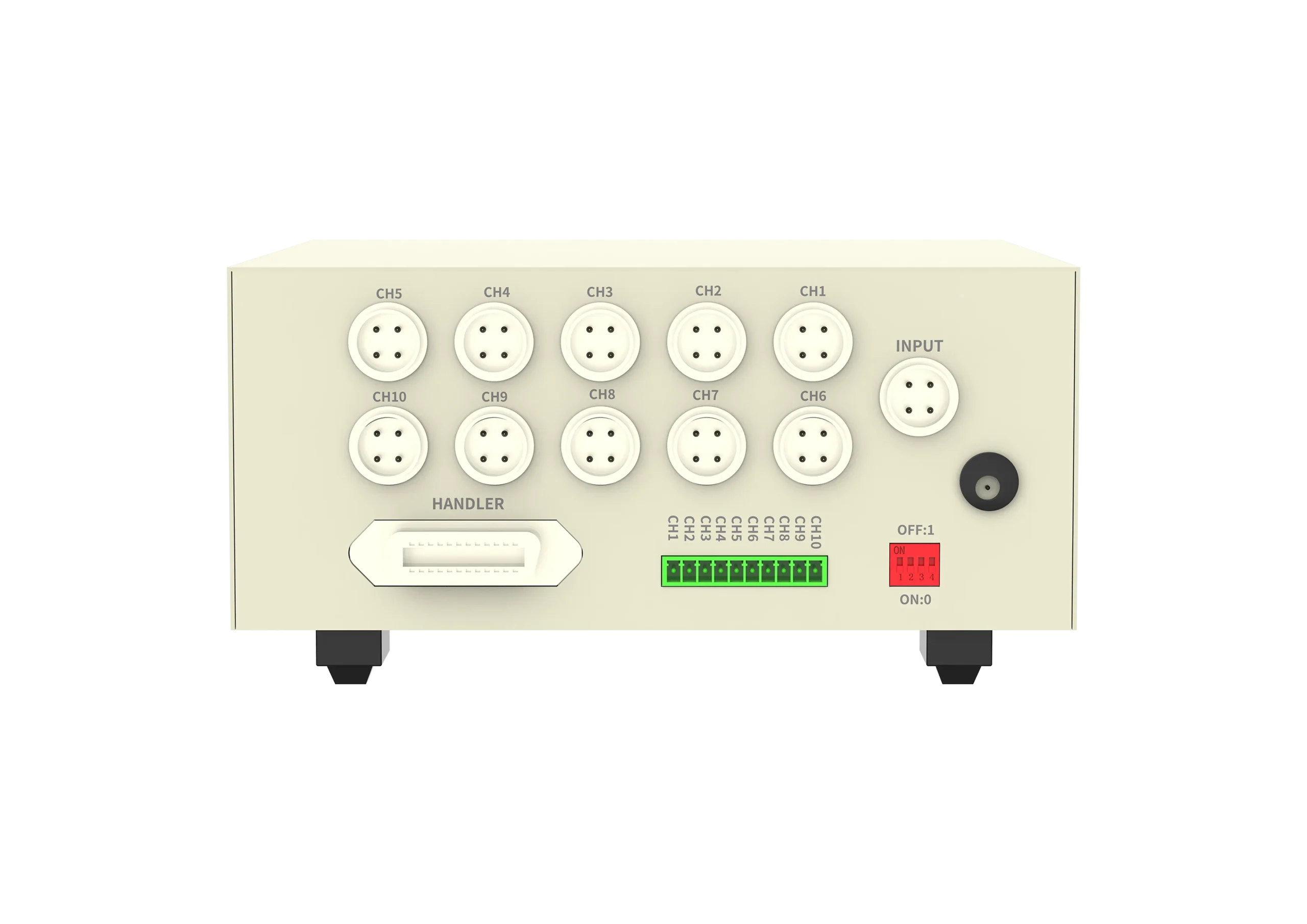

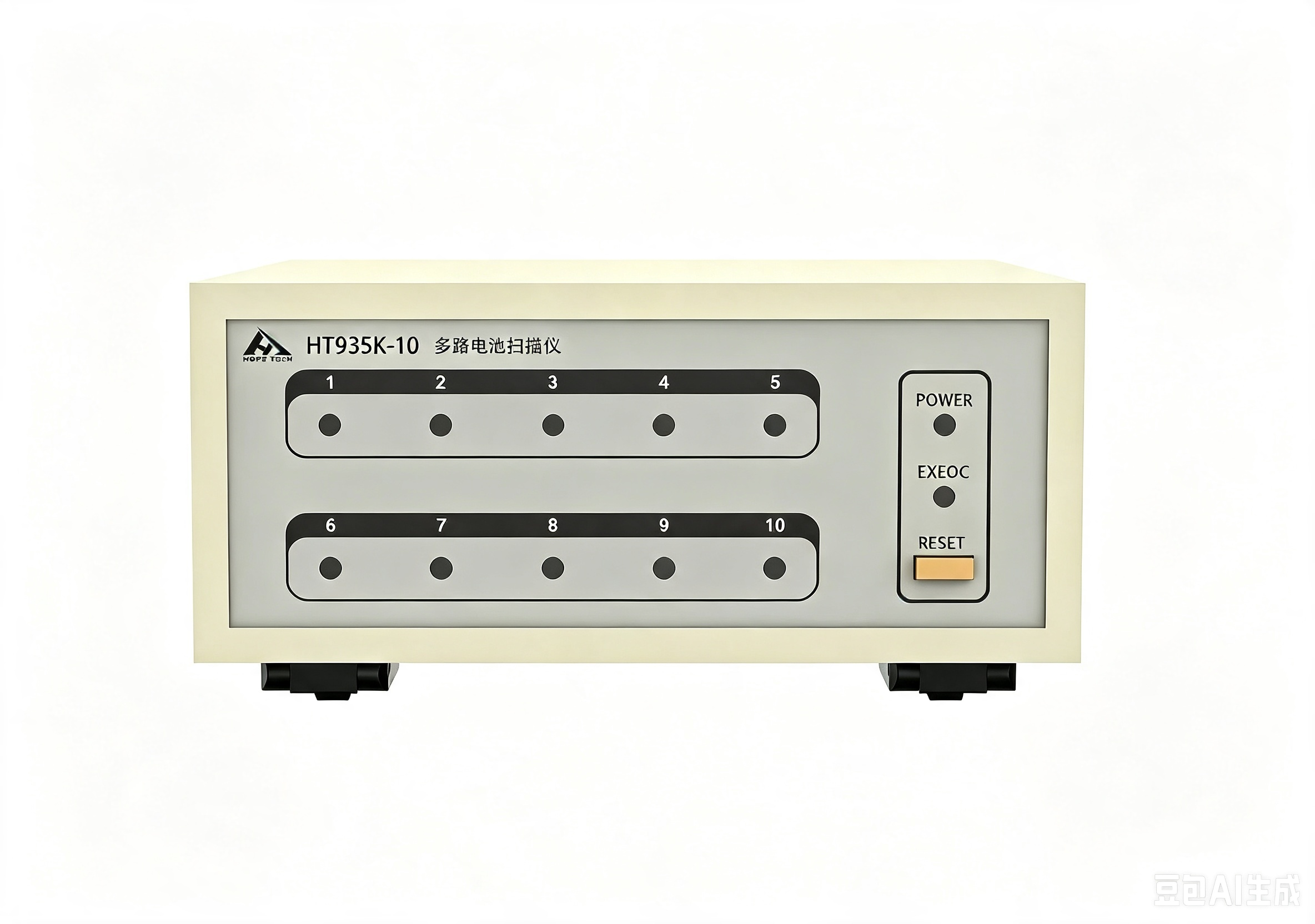

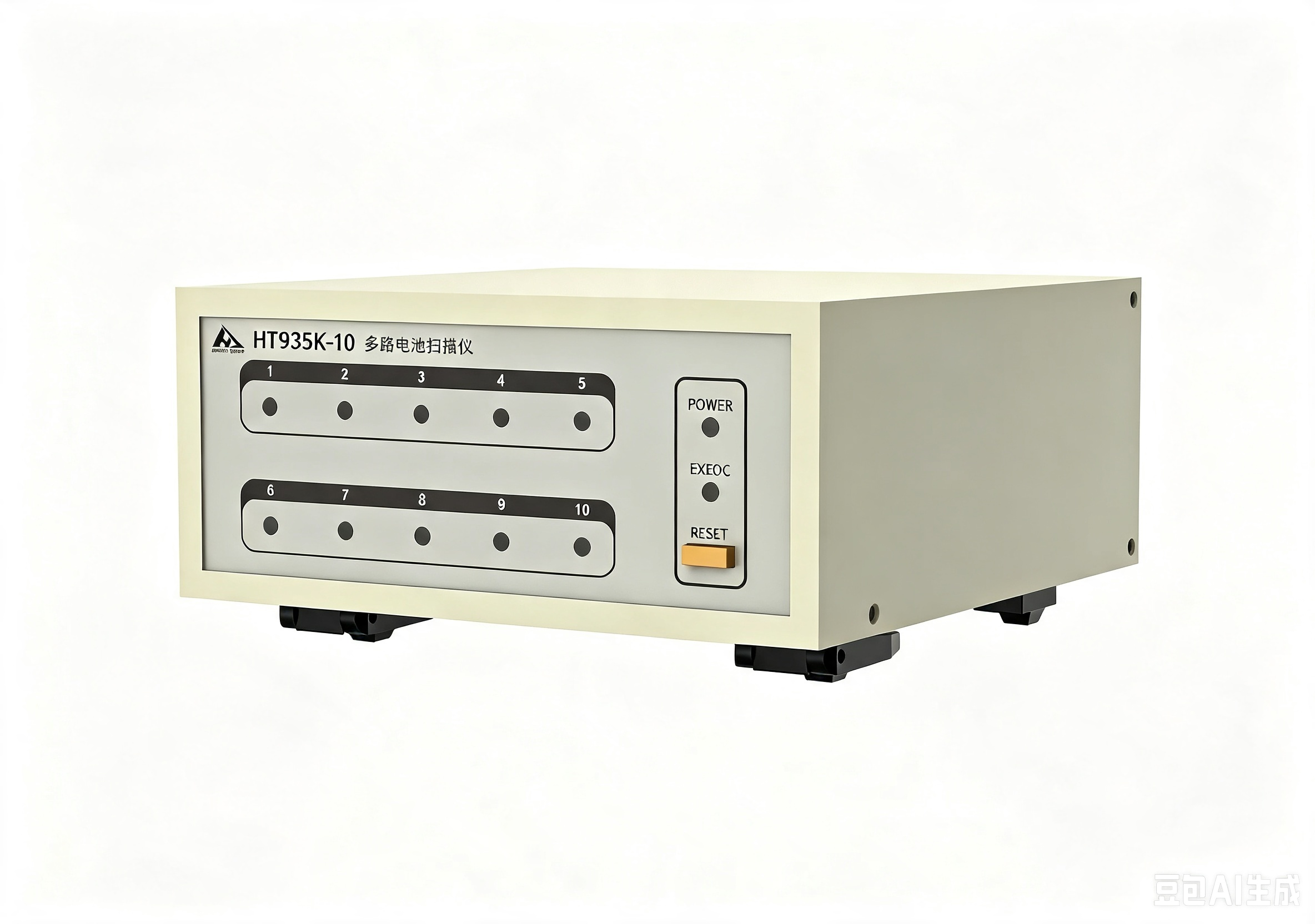

HT935K/395B/920B Multi-channel Resistance Scan Module
The channel scanning module is a dedicated built-in scanning module independently developed by Hopetech Electronics to meet mass and large-scale testing demands in the market. It matches the company’s DC resistance testers and battery testers to realize multi-channel switching resistance testing. The K series refers to built-in scanning cards, while the B series stands for external scanning boxes. Featuring high efficiency and reliability, they are ideal for switching test applications. Hopetech Electronics supplies standard upper computer software to complete data collection for all channels.
Product Introduction
The channel scanning module is a dedicated built-in scanning module independently developed by Hopetech Electronics to meet mass and large-scale testing demands in the market. It matches the company’s DC resistance testers and battery testers to realize multi-channel switching resistance testing. The K series refers to built-in scanning cards, while the B series stands for external scanning boxes. Featuring high efficiency and reliability, they are ideal for switching test applications. Hopetech Electronics supplies standard upper computer software to complete data collection for all channels.
Flexible Dual Form Factor Options
Two scanning solutions are available: built-in plug-in card type and independent external box type, adapting to various installation spaces and test scenarios.
Dual Switching Modes Available
Supports two channel switching modes: relay and MOSFET, satisfying diverse application requirements including high reliability, large current and high-speed switching.
High Voltage Withstand Design
Adopts high-voltage relay matrix with a maximum withstand voltage of 3000 V DC. Specially designed for high-voltage test scenarios, it enables safe and reliable high-voltage channel switching.
Excellent Compatibility for Multi-channel Testing
When matched with the company’s series instruments, automatic multi-channel switching testing can be realized, delivering efficient and convenient mass inspection and greatly improving test efficiency.
| Model | Number of Channels | Compatible Models | |
| HT935K-12HD/HM | 12 | HT3561 Series HT3563 Series HT7210 (Battery Tester Series) | HT3540 HT3542 HT3544 HT3545 (DC Resistance Tester Series) |
| HT935K-24HD/HM | 24 | ||
| HT935B-10H | 10 | ||
| HT920B-10H | 10 | HT3564 Series(Battery Tester Series) | HT9920 (Battery Tester Series) |
| Model | Number of Channels | Compatible Models | |
| HT935K-12HD/HM | 12 | HT3561 Series
>HT3563 Series >HT7210 >(Battery Tester Series) |
HT3540
HT3542 HT3544 HT3545 |
| HT935K-24HD/HM | 24 | ||
| HT935B-10H | 10 | ||
| HT920B-10H | 10 | HT3564 Serie
s(Battery Tester Series) |
HT9920 (Battery Tester Series) |
