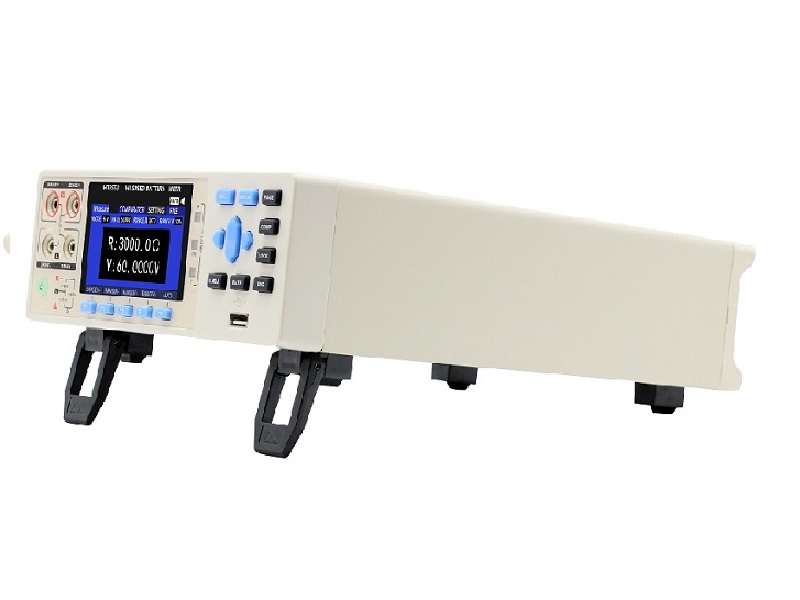

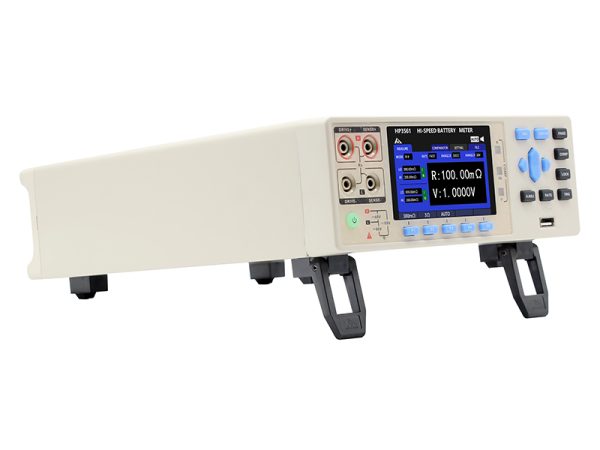

HT3561A-60V Customized Battery Internal Resistance Tester
HT3561A multi-channel Battery internal meterHT3561A-60V customized battery internal resistance tester
Suitable for small batteries, small battery packs below 60V, supporting multi-channel testing
Overview
The HT3561A-60V Customized Battery Internal Resistance Tester is built to meet modern measurement demands in the battery industry. Featuring a high-performance microprocessor and four-wire measurement design, it works well for low-resistance batteries and high-capacity lithium battery packs, supporting rapid product sorting on production lines. It measures internal resistance and voltage synchronously for fast, stable results.
Backed by Hope Instrument Technology’s long-standing expertise in battery internal resistance testing, the HT3561A-60V Customized Battery Internal Resistance Tester delivers a resistance test range of 30mΩ~3KΩ (6 ranges), resistance display range 0.001mΩ～3.1000kΩ, voltage range 6V–60V (2 ranges), and test voltage display range 0.0001V–60.000V.
Equipped with RS232 and HANDLER interfaces as standard, the HT3561A-60V Customized Battery Internal Resistance Tester supports automatic battery measurement. Compared with the standard HT3561 20V battery tester, this customized version handles small battery packs under 60V with multi-channel testing capability.
Basic Function
The HT3561A-60V Customized Battery Internal Resistance Tester, part of the HT3561A series battery tester, measures battery AC internal resistance (AC-IR) and DC voltage DCV (OCV). Adopting the four-wire test method with high-precision, low-temperature drift and high-integration chip control loop, it delivers superior accuracy and stability for low-resistance measurements.
This tester comes with standard RS232/RS485 interfaces and optional LAN port, supporting SCPI and Modbus protocols. RS232 and RS485 support both SCPI and Modbus, while LAN supports SCPI protocol. A Handler (I/O) interface is built-in for seamless connection with automation equipment.
The HT3561A-60V Customized Battery Internal Resistance Tester fits R&D product verification and automated production line testing.
Application
- The HT3561A-60V Customized Battery Internal Resistance Tester is widely adopted in the following testing scenarios:
- High-precision lithium battery internal resistance and voltage measurement
- Integration with automatic test systems for automated battery IR & voltage inspection
- Battery degradation monitoring and service life evaluation
- Supercapacitor ESR testing
Technical parameters
| HT3561A Battery Meter | |||||||||
| Model | HT3561A | 1μΩ~3.1kΩ | 0.1mV~60V | ||||||
| Display | 3.5 inch TFT color LCD | ||||||||
| Source | 1kHz±0.2Hz AC, test current amplitude < 100 mA | ||||||||
| Parameters | AC resistance AC-IR, DC voltage DC-OCV | ||||||||
| AC resistance (AC-IR) | |||||||||
| Range | 30mΩ | 300mΩ | 3Ω | 30Ω | 300Ω | 3kΩ | |||
| Max Reading | 31.000 | 310.00 | 3.1000 | 31.000 | 310.00 | 3100.0 | |||
| Resolution | 1uΩ | 10uΩ | 100uΩ | 1mΩ | 10mΩ | 0.1Ω | |||
| Measurement current | 100mA | 10mA | 1mA | 100uA | 10uA | 10uA | |||
| Accuracy | 30mΩ range: ± 0.5% rdg ±5dgt； 300mΩ to 3kΩ range: ± 0.3% rdg ±5dgt | ||||||||
| 30mΩ~3kΩ range: ± 2dgt for medium/fast (M/F) and ± 3dgt for ultra fast (EX.F); | |||||||||
| Resistance range | Seven Ranges; Automatic and manual | ||||||||
| DC voltage (DC-OCV) | |||||||||
| Range | 6V | 60V | |||||||
| Max Reading | ±6.0000V | ±60.000V | |||||||
| Resolution | 1mV | 1mV | |||||||
| Accuracy | ±0.02%rdg.±3dgt | ||||||||
| ± 2dgt for medium/fast (M/F) and ± 3dgt for ultra fast (EX.F) | |||||||||
| Other Functions | |||||||||
| Sampling Rate | Slow: 3 times/sec., Medium speed: 10 times/sec., Fast: 30times/sec., Ultra-fast: 66 times/sec | ||||||||
| Correction | All ranges short circuit zeroed | ||||||||
| Comparator | 30 records can be programmed; 10-grades sorting; | ||||||||
| Judgment result: resistance and voltage Hi/IN/Lo; Comprehensive judgment, interface display, indicator light, buzzer, external I/O output signal | |||||||||
| Beeper | GD/NG/OFF | ||||||||
| Trigger Mode | internal trigger, manual trigger, external trigger, Auto trigger, BUS | ||||||||

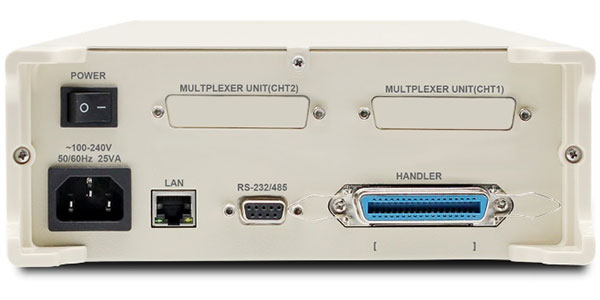

| Interface | RS232 / RS485 / LAN /Handler（PLC interface）/ USB（host） | ||||||||
| Protocol | SCPI / MODBUS | ||||||||
| Power Supply | Voltage:100V-240V AC Frequency:47Hz-63Hz | ||||||||
| Power | Pmax <15VA | ||||||||
| Dimensions | 325mm x 215mm x 80mm（L*W*H） 325mm x 215mm x 96.5mm（L*W*H）including foot pads | ||||||||
| Weight | 3kg | ||||||||
Device configuration table
| No. | Name | Models | Quantity | remark |
| 1 | Precision battery internal resistance tester | HT3561A | 1 | |
| 2 | Kelvin test line clip type | HP9363A | 1 | consumable material |
| 3 | Kelvin test line probe type | HP9363B | 1 | consumable material, optional |
| 4 | One power cord | 1 | ||

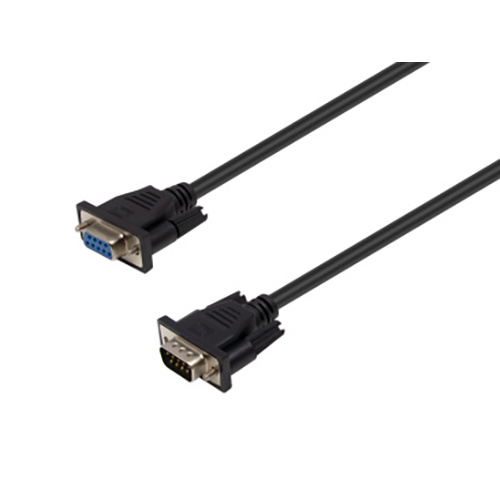

| 5 | Communication Cable (RS232) | HP9800 | 1 | |
| 6 | Handler interface | I/O interface | 1 | |
| 7 | Manual | 1 | ||
| 8 | Test report | 1 | ||
| 9 | Certificate | 1 | ||
| 10 | Packing list | 1 |

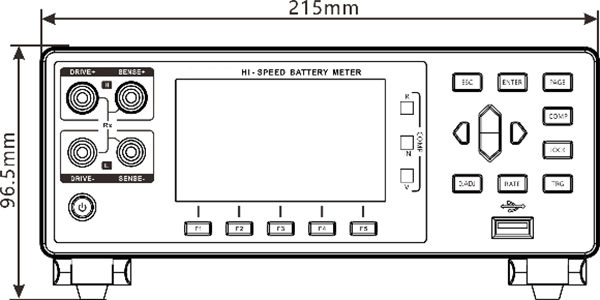

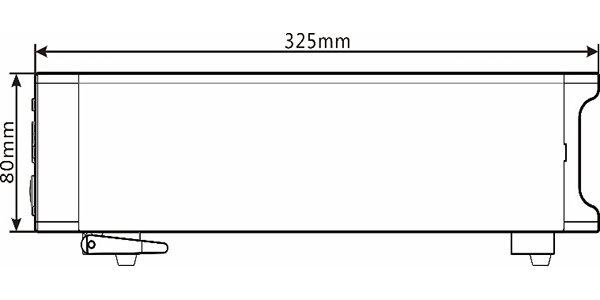

Dimension
Accessories
  |

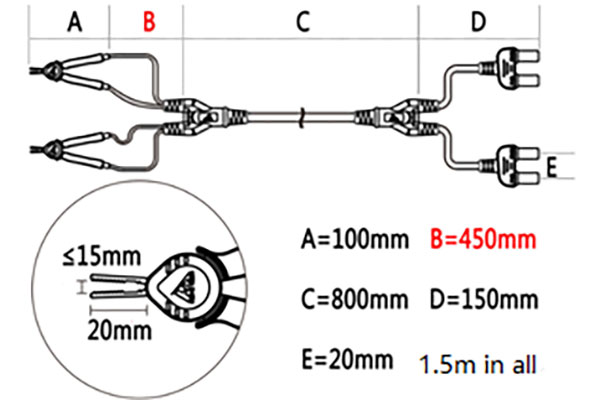

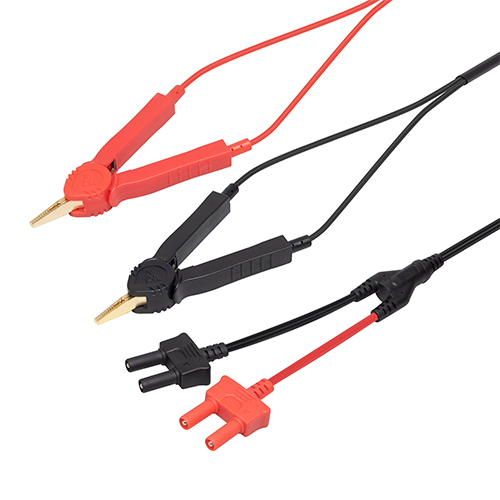

HP9363B Kelvin test lead clip type |
 |

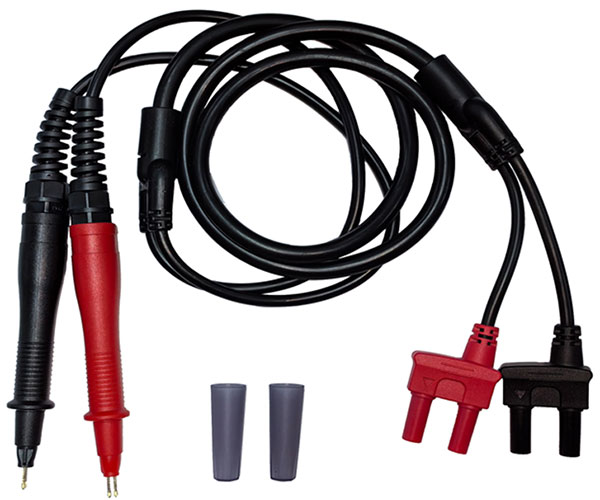

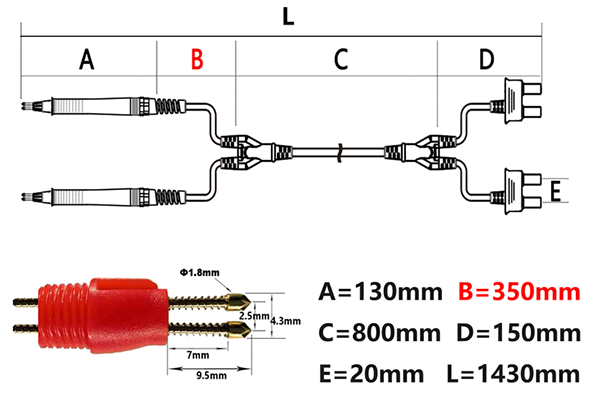

HP9363-22A Kelvin test lead pin type optional |

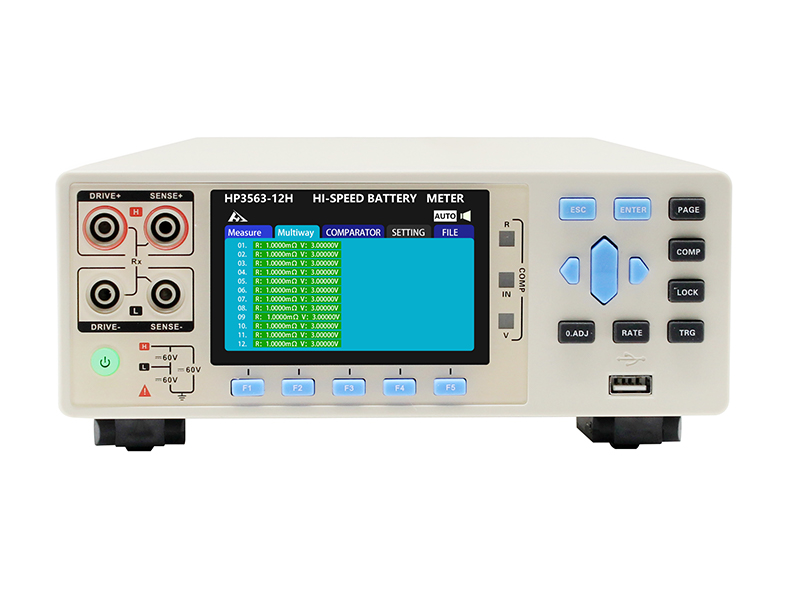

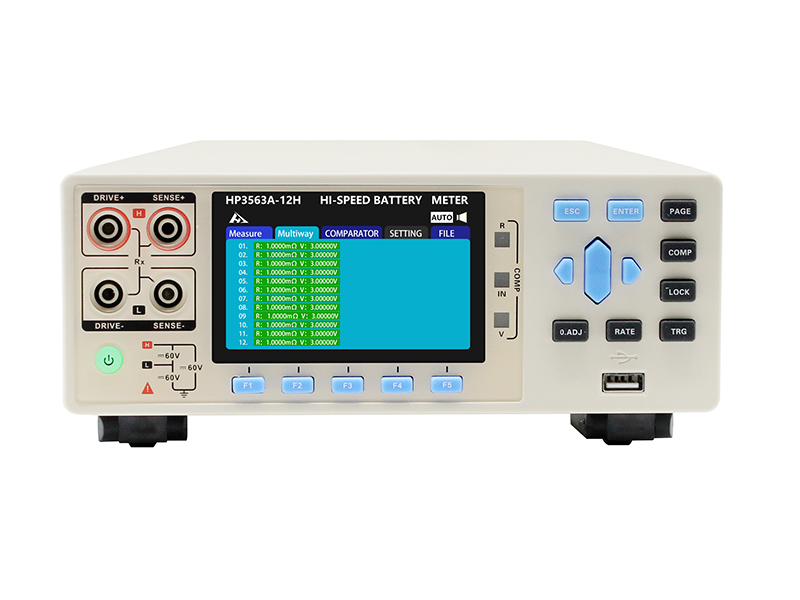

HT3561 Battery tester can be extended to multiple channels HT3561A-12H and HT3561A-24H
| Model | Channel | Application | Characteristics | |
| HT3561A | Design | Single | General use | Single test for all sizes of batteries |
| HT3561A-12H | MOSFT | 12-channel | Single cell battery | Fast scanning speed, durable MOSFT |
| Relay | Battery pack in series | Slower speed and high voltage resistance | ||
| HT3561A-24H | MOSFT | 24-channel | Single cell battery | Fast scanning speed, durable MOSFT |
More specification, please refer to HT3561A-12H and HT3561A-24H
