HT3563A-12 Benchtop Battery Internal Resistance Tester

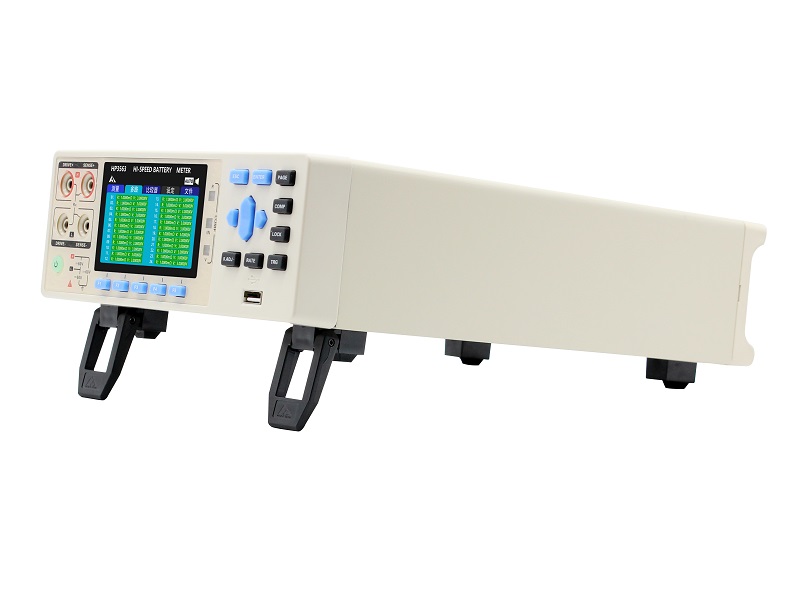

HT3563A-12 | Benchtop Battery HT3563A-12 benchtop battery internal resistance tester front viewTester
Battery Internal Resistance Tester
The HT3563A-12 battery internal resistance tester is designed for the new measurement requirements of the battery industry.
HT3563A series battery testers are designed for the new measurement requirements of the battery industry. They are special for measurement use in low-resistance batteries, large-scale lithium battery packs and fast product sorting in production lines.
The HT3563A series is capable of simultaneously checking internal resistance (IR) and battery voltage (OCV) at high speed. The product has high resolution, good stability, short test cycle, exquisite appearance, powerful function and various types of interfaces, which make it suitable for product development and automation production line.
With the technology advantage of Hopetech in battery internal resistance testing for many years, HT3563A/B series are able to offer a high resolution of 0.1uΩ and minimum resolution of 10uV.
Equipment with its standard features RS232C and hander interfaces, HT3563 series offer automatic measurement on batteries and a max measurement speed up to 50 times/sec.
Tester Technical Features
-
- The HT3563A/B series and HT3564 share the same appearance and dimensions, differing only in test voltage range.
- This battery internal resistance tester offers minimum resistance resolution of 0.1μΩ and minimum voltage resolution of 10μV.
- Minimum test cycle as fast as 10ms.
- Max test voltage up to 1000V (HT3564 model only).
- Equipped with multiple standard interfaces for integration with automatic test systems.
- Excellent anti-interference performance for stable measurement.
- Adopts AC four-terminal sensing method to achieve high-precision low-resistance measurement.
- Supports automatic test functions for mass production sorting.
Battery Tester Applications
- Inspection of high-voltage battery packs and battery modules
- High-speed mass production testing for various lithium cells
- Low-impedance component inspection for small, medium and large-scale high-volume manufacturing
- Fuel cell stack resistance & voltage testing
- Battery R&D, lab characterization and quality verification
- This battery internal resistance tester can simultaneously measure internal resistance (IR) and open-circuit voltage (OCV) at high speed
Specification
| Model | HT3563A-12 | |

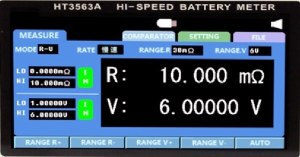

| Display | 4.3 inch TFT-LCD display | |
| Measurement parameters | ACR,DCV | |
| Resistance | Accuracy | 0.3% |
| Range | 0.1μΩ ～ 3kΩ | |
| Voltage | Accuracy | 0.01% |
| Range | 10μV～300V | |
| Signal Source | Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA | |
| Range | 7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; | |
| Auto and manual modes are available in each range | ||
| Measuring speed | 100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec. | |
| Calibration | Short-circuit reset for all ranges; | |

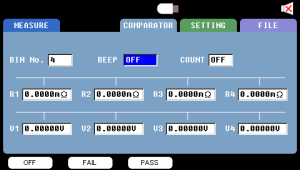

| Comparator | 30 sets of data records, 4 bins sorting, bin count | |

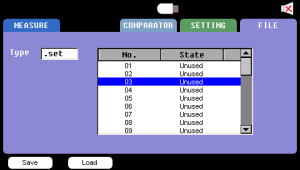

| Others | data/report save, USB disk export, | |
| Trigger mode | Internal/manual/external/bus trigger | |
| Interface | RS-232/485, Handle (PLC interface), USB, Ethernet | |
| Power supply | Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz; | |
| Power(max) | 15VA | |
| Dimension(L*W*D) | 325 mm*215 mm*96.5 mm | |
| Weight | 3 kg | |

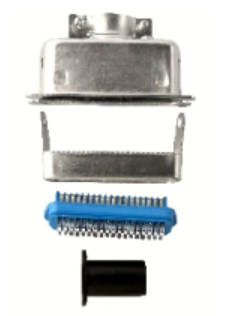

| Standard accessories | HT9363A test clip, HT9800 communication cable,PB36 connector, power cord | |
- Standard interface for automatic test equipment
- Strong anti-interference ability,
- AC four-terminal method, high-precisionmeasure low-resistance
- Automatic test function
- High resolution and good stability
- High resolution 0.1uΩ
- Maximum test voltage up to 300V

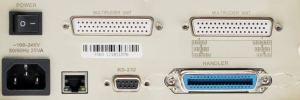

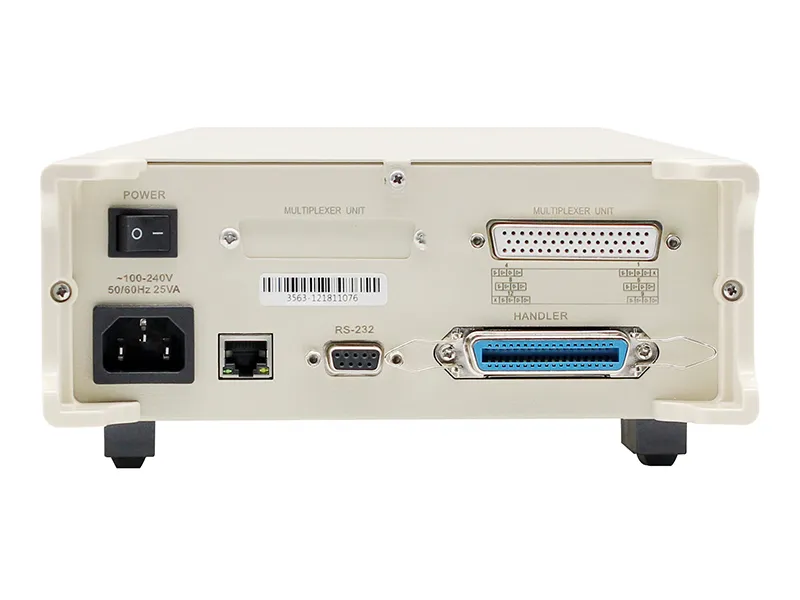

HT3563A series battery tester comes standard with RS232/RS485/LAN and I/O interface, especially suitable for supporting automatic equipment to complete automatic test.
The HT3563A multi-channel resistance tester can be used for both single-channel test and multi-channel test; They support single-card 12-channel in four-terminal test and max of 24-channel test.
Accessories
Battery Tester Multi‑Channel Expansion
The HT3563A‑12 battery internal resistance tester supports multi‑channel expansion. Users can configure multiple measurement channels according to production requirements, enabling simultaneous IR and OCV testing of multiple cells.
This multi‑channel design greatly improves testing throughput, which is ideal for high‑volume lithium battery sorting lines and automated production stations. Each channel maintains consistent high measurement accuracy and strong anti‑interference capability.
Get Quote for Battery Tester
Our HT3563A‑12 battery internal resistance tester delivers high-speed, high-precision IR and OCV measurement for lithium battery production and lab R&D.
We offer customized channel configuration, technical support and competitive pricing.
Send your inquiry now to get the latest quotation and full datasheet.
