HT3563-24 Multi-channel Precision Battery Tester

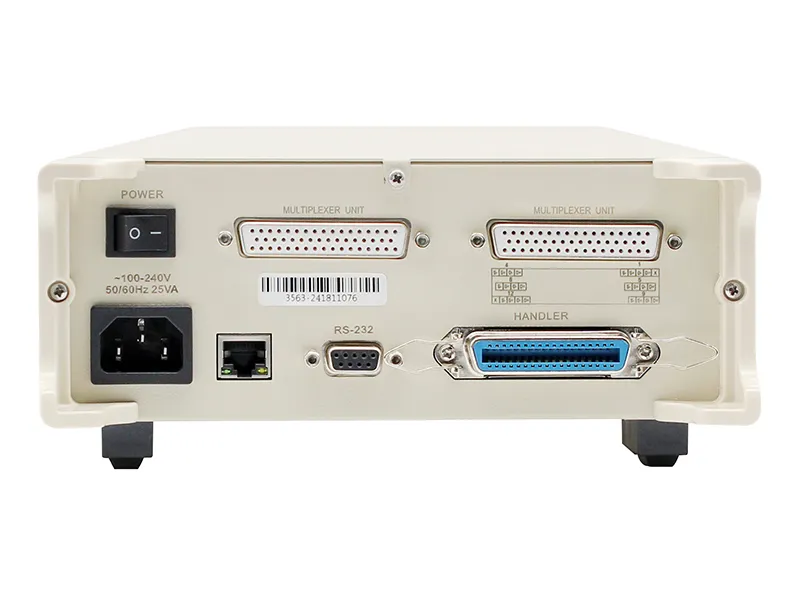

3563-24H 24-channel battery testing equipment rear panelht3563-24 -multi-channel- precision-battery-tester
HT3563-24 Battery Tester
The HT3563-24 multi-channel precision battery tester is a modular multi-channel IR & OCV testing instrument designed for battery manufacturing and laboratory R&D.
As an upgraded model in the HT3563 series, this multi-channel battery tester supports flexible channel expansion. Each measurement card delivers 12 independent test channels; users can configure the system as HT3563-12 or HT3563-24 according to production throughput needs.
The HT3563-24 multi-channel precision battery tester inherits the mature high-precision test circuit from the HT3563 platform. It can rapidly perform internal resistance and voltage sorting for up to 24 batteries simultaneously. This makes it ideal for integration into automatic battery sorting lines, batch cell inspection, and battery pack quality control.
For customers with lower throughput requirements, our HT3563-12 multi-channel precision battery tester offers the same measurement accuracy with 12 test channels.
The HT3563-24 multi-channel precision battery tester is widely adopted by lithium cell manufacturers, battery pack assembly factories and fuel cell research labs. It supports automatic sorting and data logging to help users classify cells by internal resistance and OCV values, improving battery consistency for final packs. The instrument can be integrated into existing automated production lines without major hardware modification, reducing downtime during equipment upgrade.
HT3563-24 Technical Specification
- The HT3563-24 multi-channel precision battery tester shares the same mechanical form factor as the HT3563 series and HT3564, differing only in test voltage range.
- Resistance minimum resolution: 0.1μΩ; minimum voltage resolution: 10μV.
- Minimum test cycle as fast as 10 ms.
- Equipped with multiple standard interfaces for integration with automatic test equipment.
- Excellent anti-interference performance for stable measurement on production lines.
- Adopts the AC four-terminal measurement method to achieve high-precision low-resistance testing.
- Supports fully automatic test and sorting functions.
HT3563-24 multi-channel precision battery tester Applications
The HT3563-24 multi-channel precision battery tester serves a wide range of battery testing applications:
-
- Inspection of high-voltage battery packs and battery modules
- High-speed mass production testing for various types of cells
- High-volume production inspection of large, medium and small low-impedance components
- Fuel cell stack testing
- Battery R&D measurement and characterization
- Simultaneous high-speed measurement of internal resistance (IR) and open-circuit voltage (OCV)
HT3563-24 Technical Specification

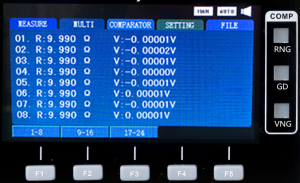

| Model | HT3563-24 | |
| Display | 4.3 inch TFT-LCD display | |
| Measurement parameters | ACR,DCV | |
| Resistance | Accuracy | 0.3% |
| Range | 0.1μΩ ～ 3kΩ | |
| Voltage | Accuracy | 0.01% |
| Range | 10μV～60V | |
| Signal Source | Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA | |
| Range | 7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; | |
| Auto and manual modes are available in each range | ||
| Measuring speed | 100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec. | |
| Calibration | Short-circuit reset for all ranges; | |

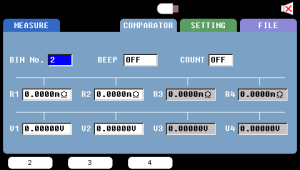

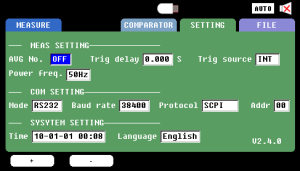

| Comparator | 30 sets of data records, 4 bins sorting, bin count | |
| Others | data/report save, USB disk export, | |
| Trigger mode | Internal/manual/external/bus trigger | |
| Interface | RS-232/485, Handle (PLC interface), USB, Ethernet | |
| Power supply | Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz; | |
| Power(max) | 15VA | |
| Dimension(L*W*D) | 325 mm*215 mm*96.5 mm | |
| Weight | 3 kg | |

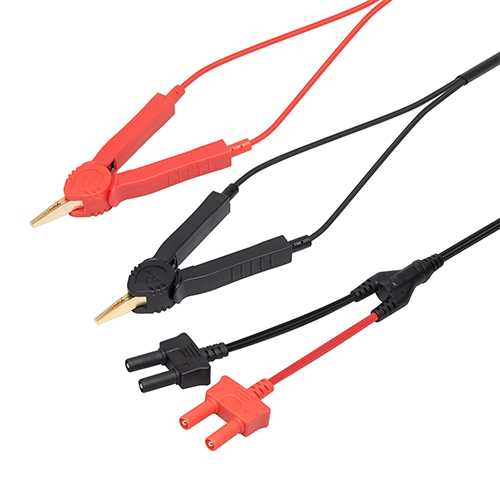

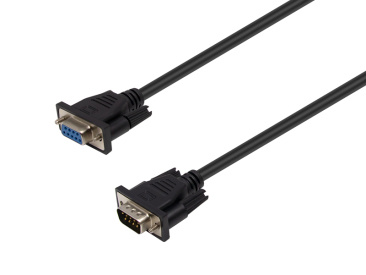

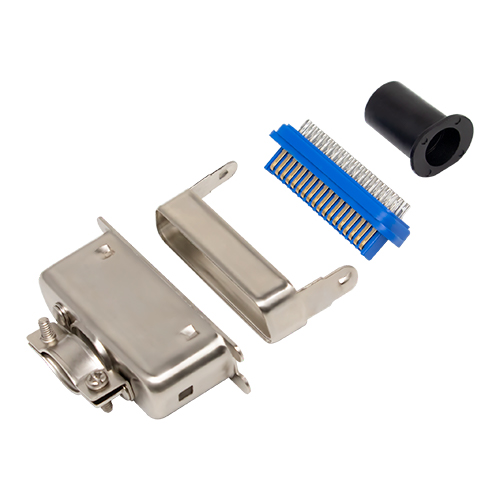

| Standard accessories | HT9363A test clip, HT9800 communication cable,PB36 connector, power cord | |

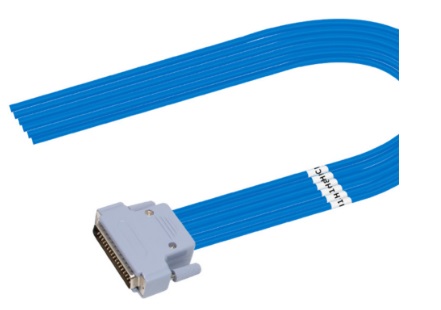

Accessories
HT3563-24 multi-channel precision battery tester Multi‑Channel Expansion
The HT3563-24 multi-channel precision battery tester adopts modular channel expansion design. Each measurement card provides 12 independent test channels. Customers can configure the system as HT3563-12 with one card or HT3563-24 with two cards according to production throughput requirements.
This flexible architecture keeps the same measurement accuracy and anti-interference performance across the HT3563 series. It allows factories to start with 12 channels and upgrade later to 24 channels without replacing the main unit, saving investment for battery production lines.
Both HT3563-12 and HT3563-24 support synchronous multi-channel IR and OCV testing and can be easily integrated into automatic sorting machines for cell batch inspection.
Get Quote of HT3563-24
Looking for reliable multi-channel battery IR & OCV tester? The HT3563-24 multi-channel precision battery tester delivers fast, stable and high-accuracy measurement for cell mass production and battery module inspection.
We provide custom integration support, technical documentation and after-sales service. Send your requirements now to get a detailed quotation and product datasheet.
