Battery Tester
HT3561-12H/24H Multi-channel Battery Tester delivers high-precision measurement with standard RS232/RS485 and I/O interfaces for automated battery pack production testing. It is a high-precision battery internal resistance tester designed for new measurement requirements in the battery industry.
It is suitable for low-resistance batteries, high-capacity lithium battery packs and fast product sorting on production lines. Leveraging Hope Instrument Technology’s years of technical advantages in battery internal resistance testing, the HT3561 series provides a high resolution of 0.01 mΩ, with a maximum test voltage of 20V and a minimum feedback time of 15ms. Equipped with RS232 and HANDLER interfaces, the HT3561-12H/24H Multi-channel Battery Tester supports automatic battery measurement for production automation systems.
The HT3561-12H/24H multi-channel battery tester can quickly complete the internal resistance and voltage sorting test of the maximum 24-channel battery. Based on the identical test circuit of the classic HT3561, the test speed and accuracy of this device are in leading position of the industry. They are the ideal supporting tool for automated test manufacturers.

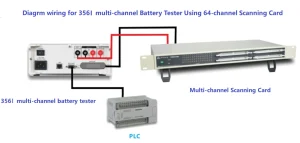

Hope Instrument also provides external multi-channel scanning card for multi-channel battery sorting or multiple battery packs. The wiring shows as following.
Core Functions

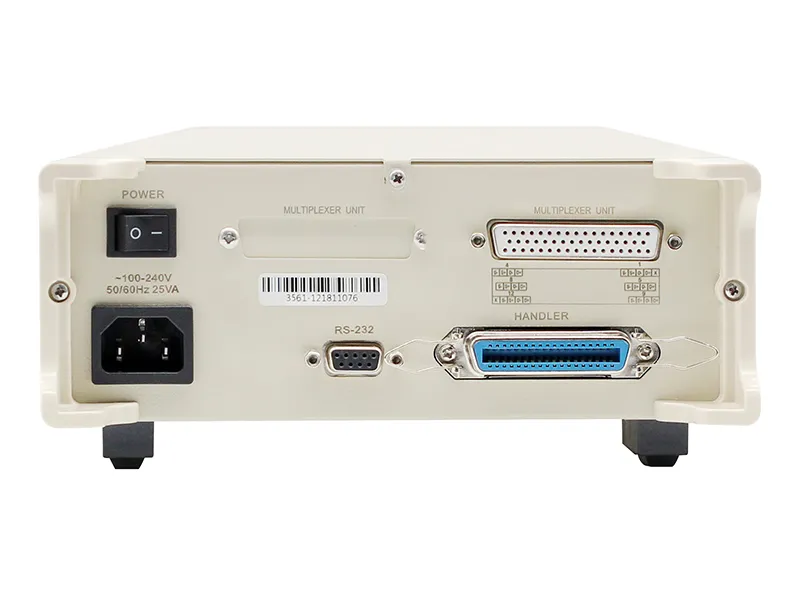

HT3561-12H/24H Multi-channel Battery Tester is equipped with standard RS232/RS485 and I/O interfaces to work with automatic production equipment for unattended testing.
Built-in multi-channel scanning cards deliver fast scanning speed, strong anti-interference performance and extended switch service life for stable long-run operation. This tester supports both single-channel and multi-channel measurement. It adopts four-terminal testing, providing 12 channels per single card and up to 24 channels in total.
- High-speed sampling test with a minimum feedback time of 15ms for fast sorting on the production line
- The highest test voltage reaches 20V, which is used for performance test of battery pack
- High resolution resistance and voltage
- Strong anti-interference ability
- Support U disk to export data
- Maximum test speed 66 times / sec
Battery Tester Applications
HT3561-12H/24H Multi-channel Battery Tester is widely used for battery quality inspection across the battery manufacturing industry:
-

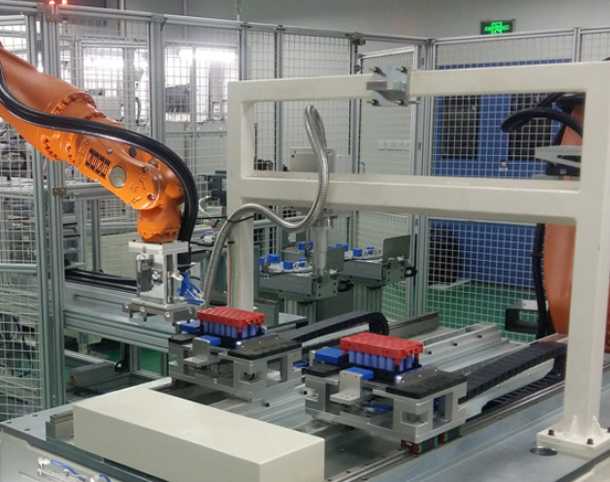

- Lithium battery automatic sorting production line
- Multi-cell lithium battery pack testing
- Simultaneous multi-battery resistance & voltage measurement
- EV battery pack internal resistance measurement
- Energy storage battery module testing
Battery Tester Technical Data Sheet
| Model |
HT3561 |
| Display |
3.5 inch TFT-LCD display |
| Measurement parameters |
ESR,DCV |
| Resistance accuracy |
0.50% |
| Resistance range |
0.01mΩ ～ 3.1Ω |
| Voltage accuracy |
0.01% |
| Voltage range |
0.1mV ~20.0000V |
| Signal Source |
Measurement current frequency:1kHz; Open circuit voltage:7V;Test current:<10mA |
| Measurement range |
2 different ranges – 300mΩ, 3Ω; Automatic and manual test mode in full range |
| Measuring speed |
66 meas/sec., 30 meas/sec., 10 meas/sec.,3 meas/sec. |
| Calibration |
Short-circuit reset for all ranges; REL function |
| Comparator |
30 sets of records, 4 grades of sorting，count number of sorting in each grade |
| Trigger mode |
Internal/manual( optional external trigger) |
| Interface |
RS-232C, Handler (PLC interface), LAN (optional) |
| Power supply |
Voltage:90VAC～250VA; Frequency: 47Hz～400Hz;Power: max 10VA |
| Dimension & weight |
325 mm (L)x215mm (W)x96.5mm (D); Weight: 3kg |
More models can be selected
| Model |
Channel |
Application |
Characteristics |
| HT3561 |
Design |
Single |
General use |
Single test for all sizes of batteries |
| HT3561/A-12H |
MOSFT |
12-channel |
Single cell battery |
Fast scanning speed, durable MOSFT |
|
Relay |
|
Battery pack in series |
Slower speed and high voltage resistance |
| HT3561/A-24H |
MOSFT |
24-channel |
Single cell battery |
Fast scanning speed, durable MOSFT |
HT3561-12H/24H Multi-channel Battery Tester Dimension & Accessories Detail Display
HT3561-12H/24H Multi-channel Battery Tester Multi-Channel Expansion Detail Display
The HT3561-12H/24H multi-channel battery tester supports flexible channel cascading and parallel expansion.
Multiple units can be interconnected to expand testing channels, meeting high-capacity batch battery testing requirements in pilot lines and mass production workshops.
It maintains consistent test accuracy and synchronous sampling across all extended channels, suitable for lithium cell, battery module and pack performance evaluation.
