HT3563-12 Multi-channel Battery Tester
HT3563-12 Multi-channel Battery Tester delivers fast industrial lithium cell resistance & voltage testing.
HT3563-12 Multi-channel Battery Tester
The HT3563-12 Multi-channel Battery Tester is a multi-channel bench instrument for fast and reliable internal resistance and voltage measurement of lithium cells. Adopting AC four-terminal sensing technology, this HT3563-12 Multi-channel Battery Tester reduces lead resistance errors and delivers consistent measurement results for mass battery sorting lines.
The HT3563-12 Multi-channel Battery Tester extends the proven HT3563 battery tester platform into 12-channel and 24-channel configurations for automated production lines and batch battery testing. Each internal test card supports 12 independent measurement channels.
This HT3563-12 Multi-channel Battery Tester rapidly performs internal resistance and DC voltage sorting for up to 24 cells simultaneously. It retains the same high-precision test circuit of the classic HT3563 battery tester, delivering industry-leading measurement speed and accuracy. It serves as an ideal test instrument for battery manufacturers and automated test system integrators.
HT3563-12 Multi-channel Battery Tester Technical Data
- The HT3563-12 Multi-channel Battery Tester shares the same form factor as the 3563 series and 3564; only the test voltage differs.
- Minimum resistance resolution: 0.1μΩ; minimum voltage resolution: 10μV.
- Minimum test cycle: 10ms.
- Max test voltage up to 1000V (HT3564 model only).
- Multiple standard interfaces for integration with automatic test equipment.
- Excellent anti-interference performance for stable industrial measurement.
- Adopts AC four-terminal method to achieve high-precision low-resistance measurement.
- Built-in automatic test function for batch battery sorting.
HT3563-12 Multi-channel Battery Tester Applications
- The HT3563-12 Multi-channel Battery Tester is widely used in the following fields:
- Inspection of high-voltage battery packs and battery modules
- High-speed mass production testing for various lithium batteries
- Low-impedance component inspection for high-volume manufacturing
- Fuel cell stack inspection
- Battery R&D measurement and characterization
- Simultaneous high-speed testing of battery internal resistance (IR) and open-circuit voltage (OCV)
HT3563-12 Multi-channel Battery Tester Technical Data Sheet

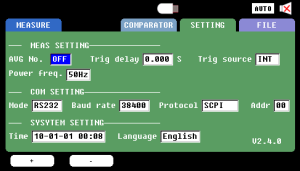

| Model | HT3563-12 | |
| Display | 4.3 inch TFT-LCD display | |
| Measurement parameters | ACR,DCV | |
| Resistance | Accuracy | 0.3% |
| Range | 0.1μΩ ～ 3kΩ | |
| Voltage | Accuracy | 0.01% |
| Range | 10μV～60V | |
| Signal Source | Measurement current frequency:1kHz; Open circuit voltage:<5V;Test current:<100mA | |
| Range | 7 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω,3KΩ; | |
| Auto and manual modes are available in each range | ||
| Measuring speed | 100 meas/sec.,50 meas/sec., 20 meas/sec., 3 meas/sec. | |
| Calibration | Short-circuit reset for all ranges; | |

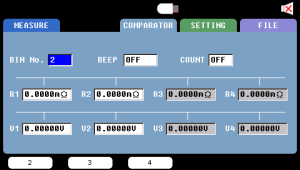

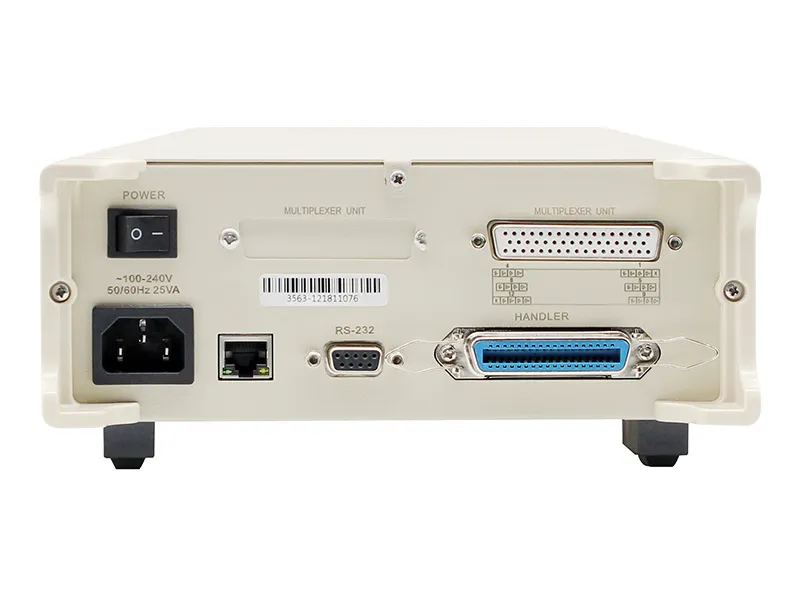

| Comparator | 30 sets of data records, 4 bins sorting, bin count | |
| Others | data/report save, USB disk export, | |
| Trigger mode | Internal/manual/external/bus trigger | |
| Interface | RS-232/485, Handle (PLC interface), USB, Ethernet | |
| Power supply | Voltage: 100VAC～256VAC; Frequency: 50Hz～60Hz; | |
| Power(max) | 15VA | |
| Dimension(L*W*D) | 325 mm*215 mm*96.5 mm | |
| Weight | 3 kg | |

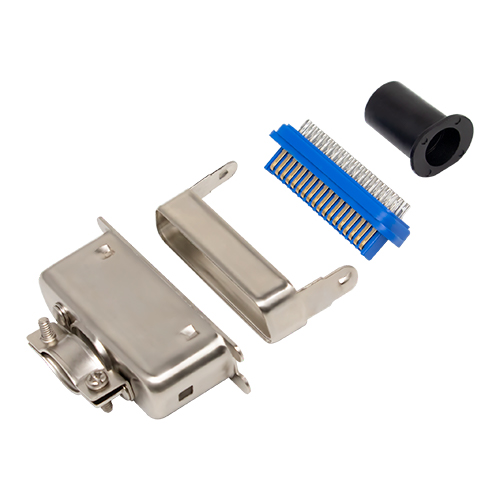

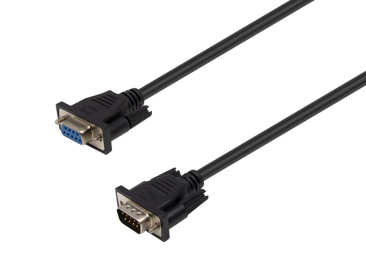

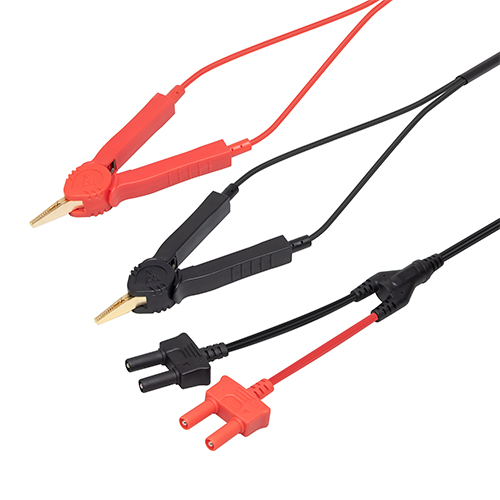

| Standard accessories | HT9363A test clip, HT9800 communication cable,PB36 connector, power cord | |

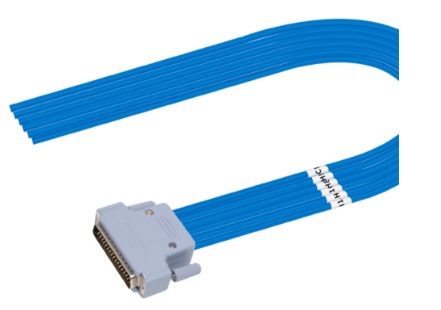

Accessories

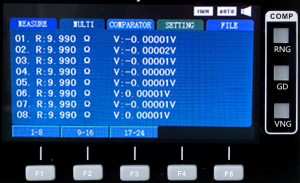

Multi-channel Expansion
The HT3563-12 Multi-channel Battery Tester supports flexible multi-channel expansion. Each measurement card provides 12 independent test channels, and users can expand up to 24 channels by adding cards, forming HT3563-12 and HT3563-24 configurations.
It inherits the mature measurement circuit of the HT3563 series, maintaining consistent test speed and accuracy. This modular design allows seamless integration into automated battery production lines for batch IR & OCV sorting, greatly improving testing throughput for mass manufacturing.
Get HT3563-12 Quote
Get your customized quotation for the HT3563-12 Multi-channel Battery Tester. Our engineering team can support channel configuration, automatic line integration and technical training. Send your test requirements now, we will reply within 24 hours with detailed specs, pricing and lead time.
