HT9931A PV Ground Continuity Tester
Support testing line anomaly detection, with 6 sets of testing modes, programmable testing and sorting can be achieved.
Overview
- HT9931A PV ground continuity tester is designed to grounding resistance characteristics of PV modules, it is also called grounding continuity tester.
- It is a stable and high accuracy instrument with 10~60A programmable current output and 0.01μΩ~600mΩ measurement range. Hopetech’s HT9931A has test line abnormal detection and built-in 3 groups test modes. Each mode is programmable and sorting.
- With optional RS485 interface, HT9931A can be easily implemented instrument network through MODBUS protocol
- HT9931A ground continuity tester is conforming to PV module standard IEC61730.
Features
- Simultaneously display test current, grounding resistance, and test time
- Constant current linear amplification output
- The testing time can be set arbitrarily
- Sound and light alarm function
Application
- Photovoltaic industry
- New energy vehicles
- Electronic components
- Medical equipment
Specification
| HT9931A PV Ground Continuity Tester | |
| Display | 95mm*20mm monochrome LCD |
| Test Parameters | IR |
| Basic accuracy | 5%( 0~15A);2% (＞15A) |
| Output Current | source is programmable within 10A～100A DC |
| Test Range | 0.01μΩ~600mΩ |
| Maximum Output Power | 600W |
| Range | Automatic range |
| Test Time | 0.1S~999.9S or continuous |
| Comparator | 3 test-conditions saving, binout with sound and light prompt |
| Test Result | read-back current, DC-resistance, binout |
| Interface | RS232/RS485(optional), I/O interface |
| Protocol | MODBUS |
| Power Supply | Voltage:198V-240V AC Frequency:47Hz-63Hz |
| Power Maximum | 650VA |
| Dimensions | 344mm*280mm*99mm（L*W*H） |
| Weight | 5.2kg |

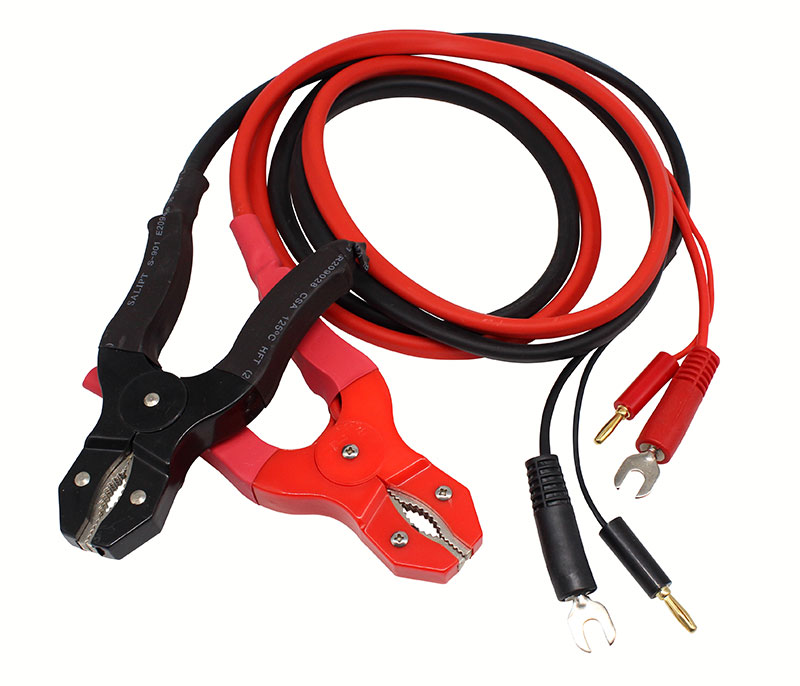

Accessories
