HT3540A and HT3540B Ultra Low-ohm DC Resistance Meter
HT3540A HT3540B DC Resistance Tester delivers 0.01μΩ precision for cable and shunt resistance testing.
HT3540A HT3540B DC Resistance Tester
The HT3540A HT3540B high-precision DC low resistance tester is specially launched by Hope Instrument to meet the ultra-low resistance test requirements in the industry of cables, materials, shunts, etc. It is featured in high precision and high stability with a minimum resolution of 0.01μΩ. HT3540B adopts low power consumption pulse forward and reverse current test mode, which greatly reduces the test error caused by the heat generated by the large current during the test.
Resistance Tester Features
- Minimum resolution 0.01μΩ, basic accuracy 0.02%
- Pulse current testing to significantly reduce heat generation during testing
- Standard temperature compensation function
- Simultaneous display of resistance and resistivity
- Forward and reverse current test mode to eliminate errors caused by thermoelectric potential
- TFT true color display (HT3540A: 3.5″, HT3540B: 4.3″)
Resistance Tester Applications
HT3540A and HT3540B are special for CABLES, MATERIALS, SHUNTS, and other industries requiring ultra-low resistance testing.
- Cables & Wires: Copper pole resistance testing
- Materials: Conductivity and resistivity evaluation
- Shunts: Precision resistance measurement for current shunts
- Batteries: ESR measurement on super capacitors and storage battery evaluation
- UPS: On-the-spot testing of uninterruptible power supplies
Resistance Tester Data Sheet

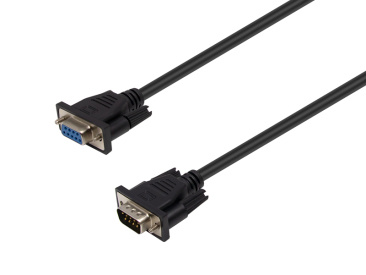

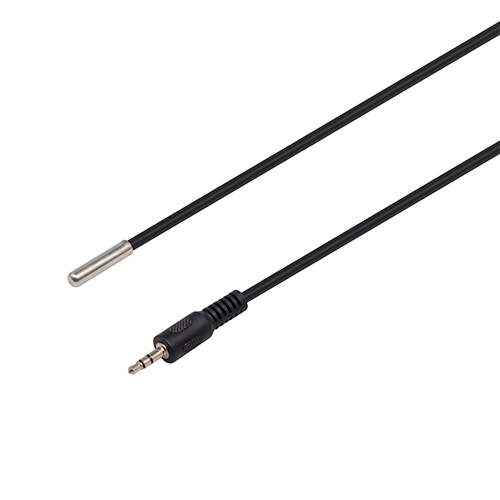

| Model | HT3540A | HT3540B |
| Measurement parameters | DC resistance, temperature | DC resistance, resistivity, temperature |
| Display | TFT3.5″ true color display | TFT4.3″ true color display |
| Basic accuracy | Resistance:0.02% | Resistance:0.02% |
| Temperature:1℃ | Temperature:0.5℃ | |
| Measurement range | Resistance: 0.1μΩ～300Ω | Resistance: 0.01μΩ～300Ω |
| Temperature: 0~100℃ | Temperature: 0~100℃ | |
| Current mode | Max current:2A | Max current:14A |
| Current mode: pulse current, forward and reverse current test | ||
| Range | 5 different ranges-30mΩ,300mΩ,3Ω,30Ω,300Ω | 6 different ranges-3mΩ,30mΩ,300mΩ,3Ω,30Ω,300Ω |
| auto and manual modes are available in each range | ||
| Measuring speed | 1 meas/sec.,3 meas/sec.,15 meas/sec., | 1 meas/sec.,2 meas/sec., |
| Calibration | short-circuit reset for all ranges | |
| Comparator | 1 sets of data records, sorting | 1 sets of data records, sorting |
| Trigger mode | internal/external/remote trigger | |
| Interface | RS-232, IO interface | |
| Power supply | voltage:198VAC-252VAC ; Frequency: 47.5Hz～52.5Hz;Power: max 15VA | |
| Dimension (W*H*D)& weight | 278mmx249mmx102mm; weight: 3.5kg | |
| Accessories | HT9340A test clip, HT9340A-36S fixture cable, HT9348 temperature probe, power cord | |
Accessories

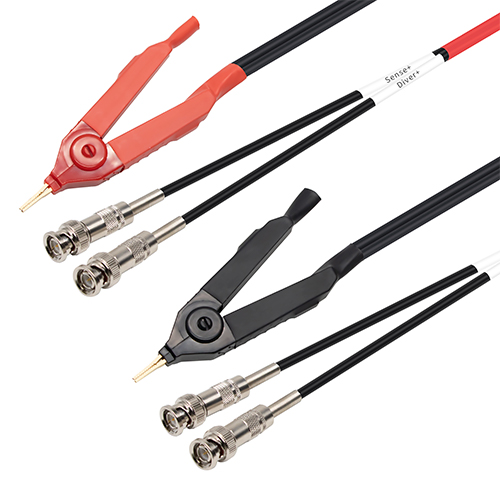

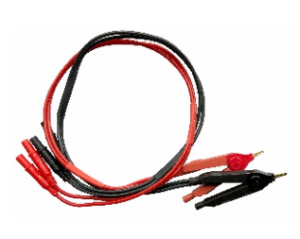

HT9340A test clip

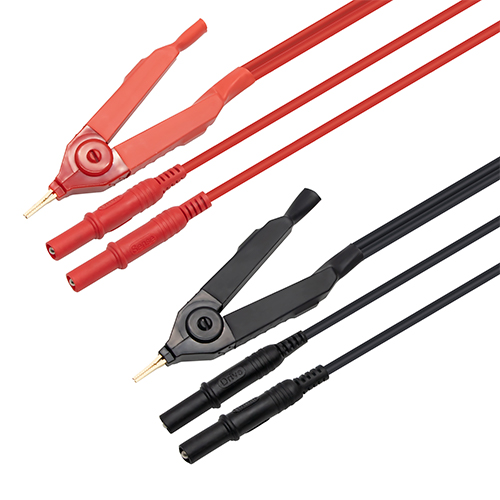

HT9340A-36S fixture cable
Resistance Tester Multi-Channel Extension
The HT3540A HT3540B DC Resistance Tester supports multi-channel expansion with external scanning modules. It realizes synchronous or sequential multi-point resistance measurement, greatly improving test efficiency for batch samples on production lines. Ideal for harness testing, multi-component inspection and automated ATE systems.
