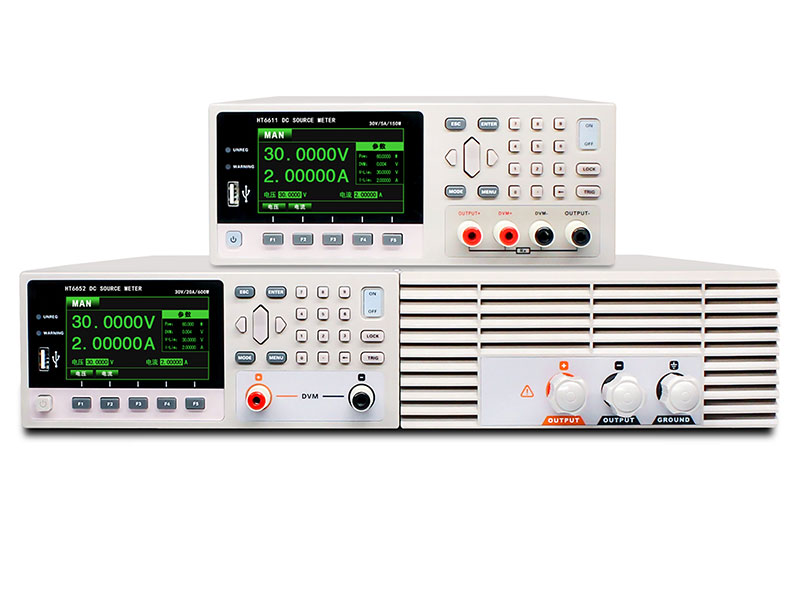

HT66 Series Programmable DC Power Supply 150W to 600W
HT66 Series Programmable DC Power Supply delivers high-precision output for aerospace, lab and automotive power testing applications.
HT66 Programmable DC Power Supply Overview
- The HT66 Series Programmable DC Power Supply adopts a high-performance microprocessor architecture for stable, reliable power output in precision test environments.
- Delivers high precision and ultra-low ripple & noise, with noise amplitude less than 3mV.
- Features outstanding resolution and measurement accuracy up to 0.1mV / 0.01mA.
- Integrated high-precision 5 1/2 digit voltmeter and milliohm meter for convenient inline measurement.
- Equipped with an intelligent temperature-controlled fan system to reduce acoustic noise and extend service life.
This programmable DC source is widely used for battery testing, aerospace component validation and laboratory R&D. It helps engineers achieve repeatable, accurate power control for product verification.
HT66 Power Supply Technical Features
- The HT66 Series Programmable DC Power Supply integrates versatile functions to meet diverse precision test demands:
- 5-inch TFT color display for clear real-time parameter monitoring
- High-precision, dynamically programmable output for automated testing
- Built-in load regulation test function
- Dual-language operation menu (English & Chinese) with rich configurable functions
- External trigger input & output for synchronous system control
- Remote voltage compensation and multi-group measurement data storage
HT66 Power Supply Applications
- The HT66 Series Programmable DC Power Supply is widely adopted in multiple precision power test scenarios for electronic product validation and R&D.
- University laboratories & research institutes for education and product development
- Aerospace electronics component testing and qualification
- Power supply testing for semiconductors and sensitive electronic components
- Automotive electronic parts verification and reliability test
- Wireless communication module R&D and performance validation
Specifications
| HT66 series 150W models | ||||

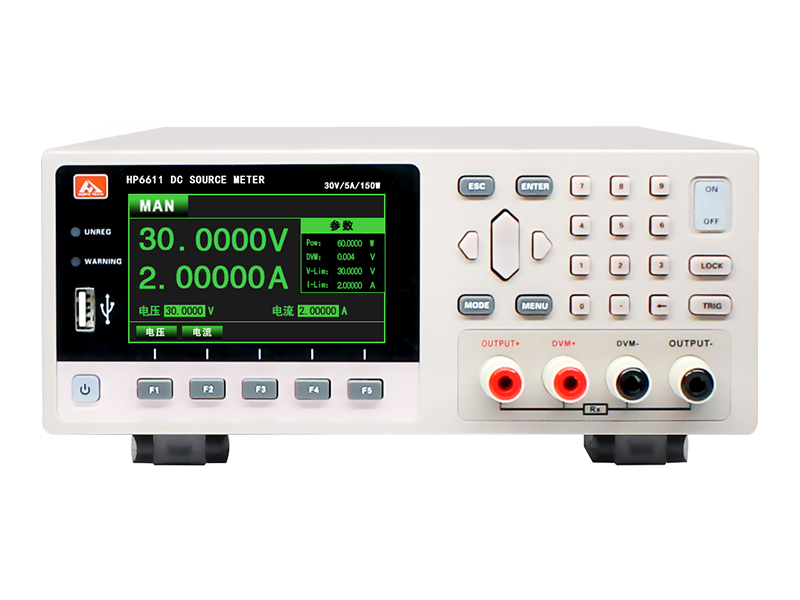

| Model | HT6611 | HT6612 | HT6613 | |
| Rated output | Voltage | 0-30V | 0-75V | 0-150V |
| Current | 0-5A | 0-2A | 0-1A | |
| Load regulation | Voltage | <0.01%+0.5mV | <0.01%+0.5mV | <0.01%+0.5mV |
| Current | <0.01%+0.1mA | <0.01%+0.1mA | <0.01%+0.1mA | |
| Setting Value Resolution | Voltage | 0.5mV | 1mV | 2mV |
| Current | 0.1mA | 0.05mA | 0.01mA | |
| Readback Value Resolution | Voltage | 0.1mV | 0.1mV | 1mV |
| Current | 0.01mA | 0.01mA | 0.01mA | |
| Setting Value Accuracy | Voltage | 0.01%+2mV | 0.01%+5mV | 0.01%+10mV |
| Current | 0.05%+1mA | 0.05%+0.5mA | 0.05%+0.1mA | |
| Readback Value Accuracy | Voltage | 0.02%+5mV | 0.02%+15mV | 0.02%+35mV |
| Current | 0.1%+5mA | 0.05%+2mA | 0.05%+1mA | |
| Ripple | Voltage | 3mvp-p | 5mvp-p | 10mvp-p |
| Current | 2mA rms | 1mA rms | 0.5mA rms | |
| Voltmeter Accuracy | 0-12V accuracy 0.02%+2mV; 0-58V accuracy: 0.02%+6mV | |||
| Milli ohmmeter Accuracy | 10W. 0-1000mΩ accuracy:0.2%+3mΩ; 1000-10000mΩ accuracy:0.2%+6mΩ | |||
| Working Condition | 0-40℃;0-90%RH | |||
| Power Required | AC 120V/220V±10%； 50/60HZ | |||
| Weight | 6.5kg | |||
| Dimension | 358mm(D)*214mm(W)*104mm (H) | |||
| HT66 series 360W-600W models | ||||

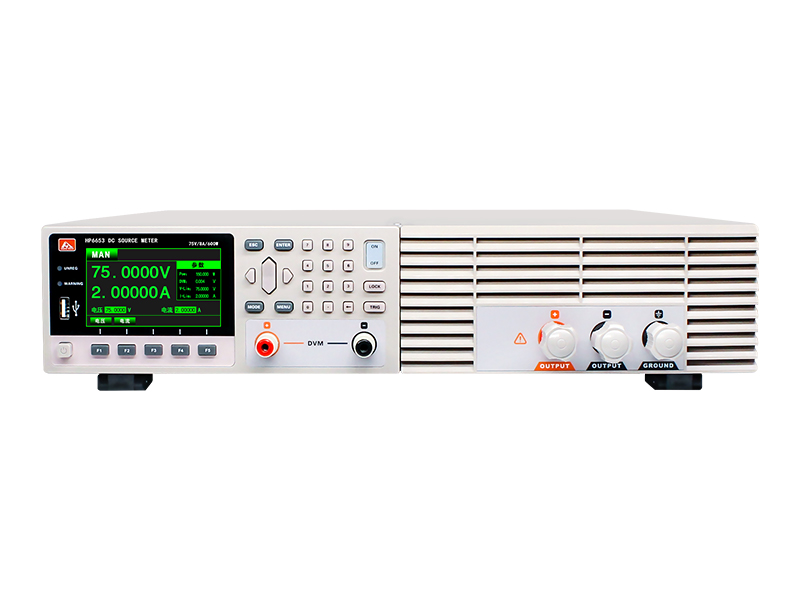

| Model | HT6651 | HT6652 | HT6653 | |
| Rated output | Voltage | 0-6V | 0-30V | 0-75V |
| Current | 0-60A | 0-20A | 0-8A | |
| Load regulation | Voltage | <0.01%+1mV | <0.01%+1mV | <0.01%+1mV |
| Current | <0.01%+0.1mA | <0.01%+0.1mA | <0.01%+0.1mA | |
| Setting Value Resolution | Voltage | 0.1mV | 0.5mV | 1mV |
| Current | 1mA | 0.5mA | 0.2mA | |
| Readback Value Resolution | Voltage | 0.1mV | 0.1mV | 0.11mV |
| Current | 0.1mA | 0.1mA | 0.1mA | |
| Setting Value Accuracy | Voltage | 0.01%+1mV | 0.01%+5mV | 0.01%+10mV |
| Current | 0.05%+6mA | 0.05%+2mA | 0.05%+1mA | |
| Readback Value Accuracy | Voltage | 0.02%+2mV | 0.02%+5mV | 0.02%+15mV |
| Current | 0.05%+45mA | 0.05%+20mA | 0.05%+8mA | |
| Ripple | Voltage | 3mvp-p | 5mvp-p | 7mvp-p |
| Current | 15mA rms | 7mA rms | 4mA rms | |
| Voltmeter Accuracy | 0-12V accuracy 0.02%+2mV; 0-58V accuracy: 0.02%+6mV | |||
| Milli ohmmeter Accuracy | 10W. 0-1000mΩ accuracy:0.2%+3mΩ; 1000-10000mΩ accuracy:0.2%+6mΩ | |||
| Working Condition | 0-40℃;0-90%RH | |||
| Power Required | AC 120V/220V±10%； 50/60HZ | |||
| Weight | 25kg | |||
| Dimension | 382mm(D)*249mm(W)*102mm (H) | |||

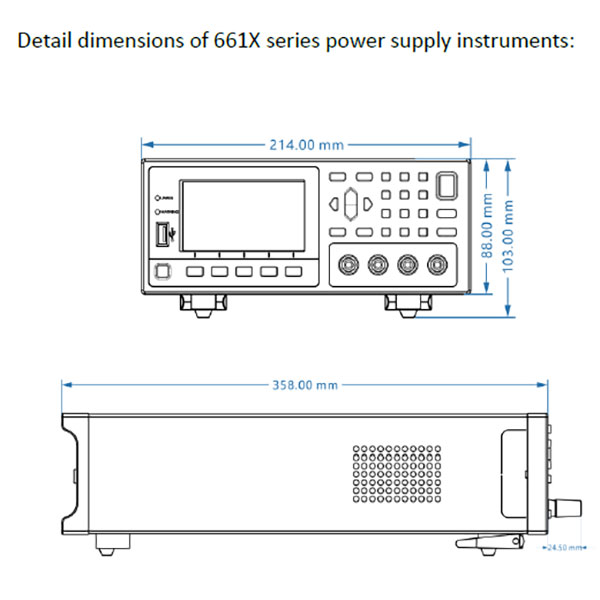

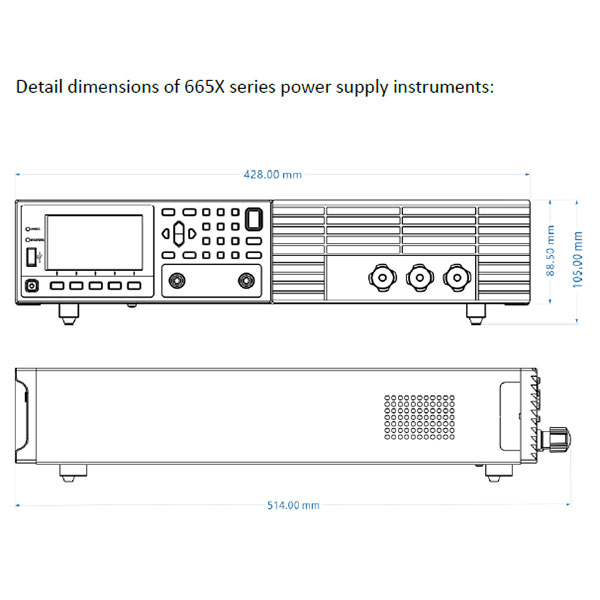

Dimension
