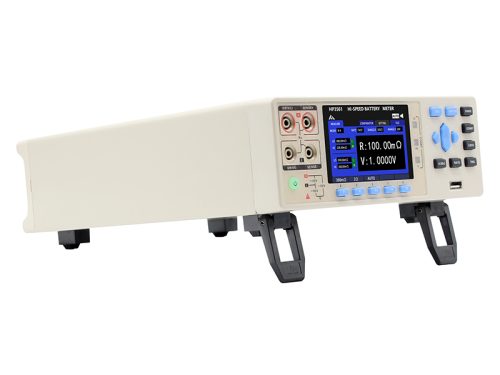

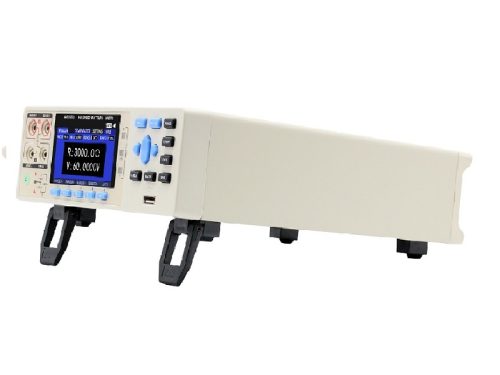

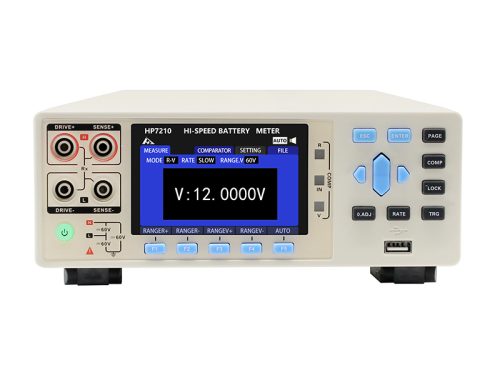

HT7210 HT7210-12H HT7210-24H DC Voltage Tester
HT7210 HT7210-12H HT7210-24H DC Voltage Tester, high precision 6-digit voltmeter for battery production testing.
Overview
The HT7210 HT7210-12H HT7210-24H DC Voltage Tester is a high-performance digital DC voltmeter built around an advanced microprocessor core. It features a 6 1/2 digit display, outstanding measurement accuracy and a broad voltage measurement range, which helps engineers capture tiny voltage fluctuations reliably during battery testing.
This DC voltage tester is specially developed for lithium battery test scenarios. It can precisely measure DC voltage and temperature of lithium battery cells and packs, as well as DC output voltage from various sensors. Equipped with the exclusive capacitive contact check function, the instrument effectively detects poor contact and is ideal for external potential (edge voltage) measurement of lithium batteries, greatly reducing misjudgment in battery inspection.
The HT7210 DC voltmeter delivers ultra-high resolution and excellent long-term stability. It provides a fast test cycle to boost your production throughput. With compact exquisite appearance, powerful built-in functions and abundant communication interfaces, the tester can be easily integrated into automated test benches. It is widely adopted for laboratory R&D verification and high-volume automated production line quality control.
Basic Function
- Voltage resolution 10μV
- Minimum test cycle 5mS
- 003% voltage test accuracy
- Contact detection
- Automatic test function
- Strong anti-interference ability
- Various interfaces are available and suitable for ATE
- Input impedance 10MΩ
- Support multi-channel test (optional multi-scan card)
- DC voltage detection is applied
- Lithium battery external potential (side voltage) detection
HT7210 DC Voltage Tester Applications
- The HT7210 HT7210-12H HT7210-24H DC Voltage Tester is widely deployed across battery R&D labs and automated manufacturing workshops for high-precision voltage measurement. It supports multi-channel synchronous sampling to meet diverse testing demands in new energy industries.
- DC voltage detection for electronic components, sensor signal output and power module inspection
- Lithium battery external potential (side voltage) detection for cell and battery pack safety screening
- Lithium cell / battery pack voltage & temperature monitoring during R&D and aging test
- New energy battery production line quality inspection and online sorting test
- Precision DC measurement for fuel cell stacks and power electronics assemblies
- Laboratory calibration and verification of low-voltage DC signals
HT7210 DC Voltage Tester Specification
Below are the core technical specifications of the HT7210 HT7210-12H HT7210-24H DC Voltage Tester. These parameters guarantee reliable, repeatable high-precision DC voltage measurement for lithium battery testing, sensor inspection and automated production quality control. Users can adjust test speed and set comparison thresholds according to different R&D and production test requirements.
| Model | HT7210 | HT7210-12H | HT7210-24H | |
| Channel No. | Single-channel | 12-channel | 24-channel | |
| Test parameters | DC voltage | |||
| voltage | Basic accuracy | 0.01%+0.001%FS | ||
| Range | 10uV~10.0000V | |||
| Test speed | 100 times/second,50 times/second,3 times/second | |||
| Calibration method | Full range short circuit reset | |||
| Comparators | 30 groups of records, 4-level sorting, file counting | |||
| Data export | Export data and store in a USB drive | |||
| Trigger mode | Internal Trigger (INT), Manual Trigger (MAN), External Trigger (EXT), Bus Trigger (BUS), Auto Trigger (AUT) | |||
| Interfaces | RS232/485, LAN, I/O | |||
| Power supply | Voltage: 100VAC~256VAC; Frequency: 50Hz~60Hz; Rated power: 15VA | |||
| Size | 325mm*215mm*96.5mm； Weight: 3kg | |||

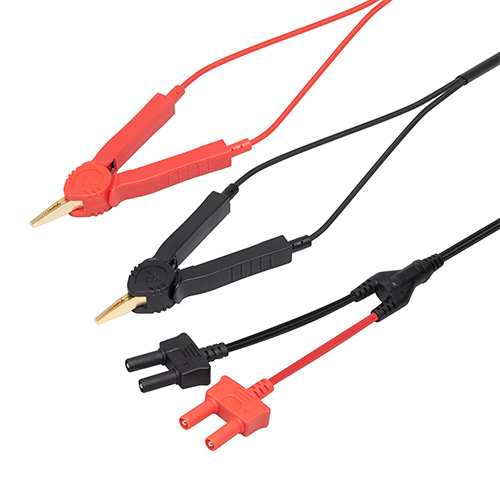

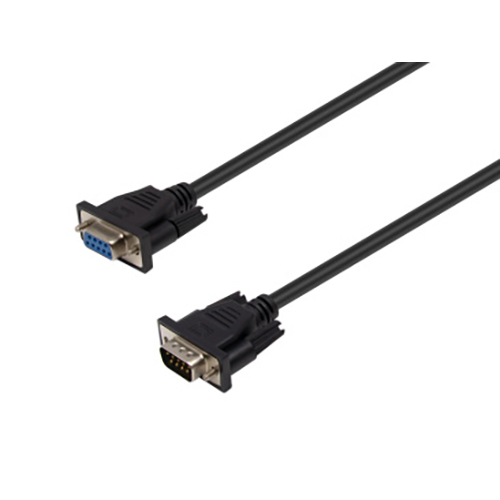

| Accessories | HT9363A test clip,HT9800 test line,PB36 connector, power cord,HT934X-12-1.5m(for only HT7210-12H and HT7210-24H) | |||

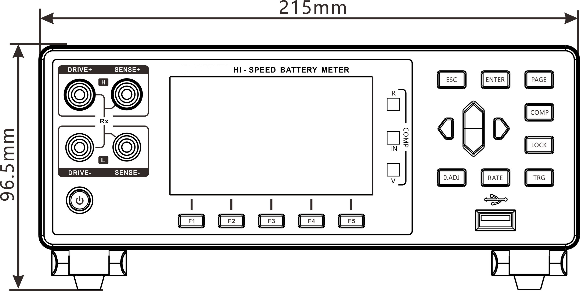

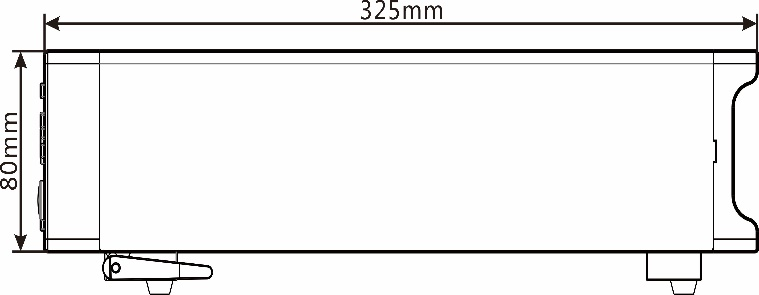

HT7210 DC Voltage Tester Dimension Detail Display
